Honda HRB475C - SDE - MZCE 8000001-8999999 Transmission Diagram

Name: Honda HRB475C - SDE - MZCE 8000001-8999999 Transmission Diagram
SKU: hrb475c_sde_mzce_8000001_8999999_transmission_sde_sdee_-group
Price: 1.14 GBP
Availability: InStock

Part No. hrb475c_sde_mzce_8000001_8999999_transmission_sde_sdee_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB475C - SDE - MZCE 8000001-8999999 Transmission Diagram

Description

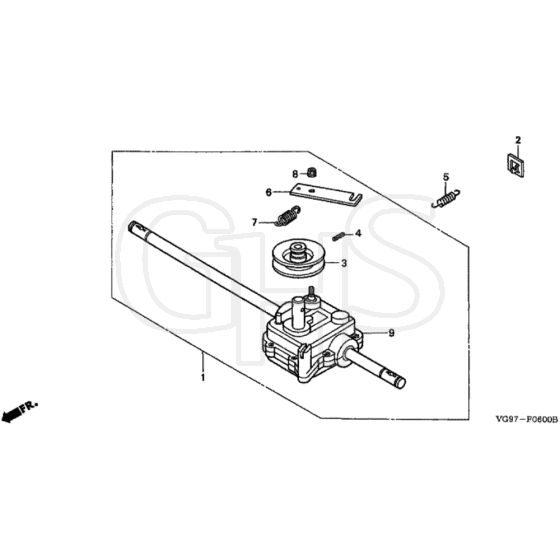

Honda HRB475C - SDE Rotary Mower Parts Diagram

	Part No.	Details
1	HP20001-VE0-L02 Available to backorder	Transmission Assy	£251.88 £209.90
2	HP21557-VE0-800 Available to backorder	Tension Spring Plate	£4.57 £3.81
3	HP22421-VK7-800 Available to backorder	Pulley	£21.20 £17.67
4	HP22428-VA9-F60 Available to backorder	Spring Pin	£1.37 £1.14
5	HP22534-VA9-K41 Available to backorder	Tension Spring	£7.40 £6.17
6	HP23436-VE0-851 Available to backorder	Clutch Arm	£16.62 £13.85
7	HP23439-VE0-851 In stock	Clutch Arm Return Spring	£4.98 £4.15
8	HP90301-VE0-L01 Available to backorder	Lock Nut 5Mm	£5.68 £4.73
