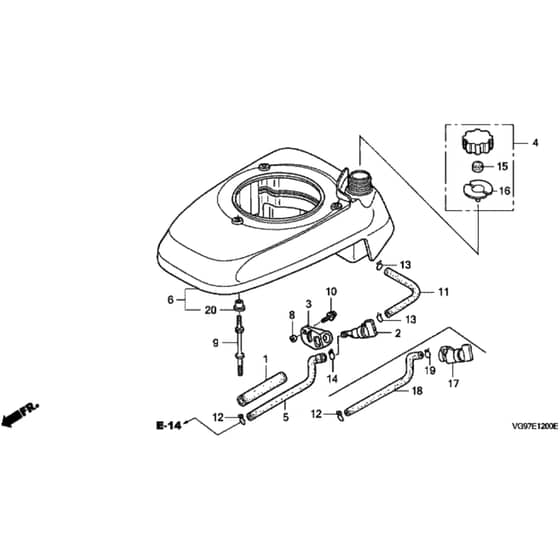

Honda HRB475C - PDEE - MZCE 8000001-8999999 Fan Cover Diagram

Name: Honda HRB475C - PDEE - MZCE 8000001-8999999 Fan Cover Diagram
SKU: hrb475c_pdee_mzce_8000001_8999999_fan_cover-group
Price: 0.81 GBP
Availability: InStock

Part No. hrb475c_pdee_mzce_8000001_8999999_fan_cover-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB475C - PDEE - MZCE 8000001-8999999 Fan Cover Diagram

Description

Honda HRB475C - PDEE Rotary Mower Parts Diagram

	Part No.	Details
1	HP16854-ZH8-000 Available to backorder	Support Rubber	£3.72 £3.10
2	1271 In stock	Fuel Tap Assy (up to eng no. 1623932)	£3.68 £3.07
3	HP16956-ZM0-000 Available to backorder	Fuel Tap Bracket	£3.35 £2.79
4	HP17620-ZL8-023 In stock	Fuel Cap Assy	£12.47 £10.39
5	HP17702-ZM0-000 Available to backorder	Fuel Pipe (up to eng no. 1623932)	£10.60 £8.83
8	HP33609-GK4-620 Available to backorder	Collar	£3.58 £2.98
9	HP90043-ZL8-000 In stock	Stud	£4.56 £3.80
10	HP93891-0501008 Available to backorder	Washer	£1.51 £1.26
11	HP95001-5500160M Available to backorder	Fuel Pipe	£26.24 £21.87
12	HP95002-02080 In stock	Tube Clip	£1.19 £0.99
13	HP95002-02100 In stock	Tube Clip	£1.31 £1.09
14	HP95002-50000 Available to backorder	Tube Clip	£0.97 £0.81
15	HP17622-888-010 In stock	Breather Sponge	£1.63 £1.36
16	HP17624-ZE7-000 In stock	Fuel Cap Gasket	£3.55 £2.96
17	HP16950-ZM0-003 In stock	Fuel Tap Assy (eng no. 1623933 +)	£42.26 £35.22
18	HP17702-ZM0-800 In stock	Fuel Pipe (eng no. 1623933 +)	£10.98 £9.15
20	HP19619-ZL8-300 Available to backorder	Fan Cover Collar	£1.49 £1.24
