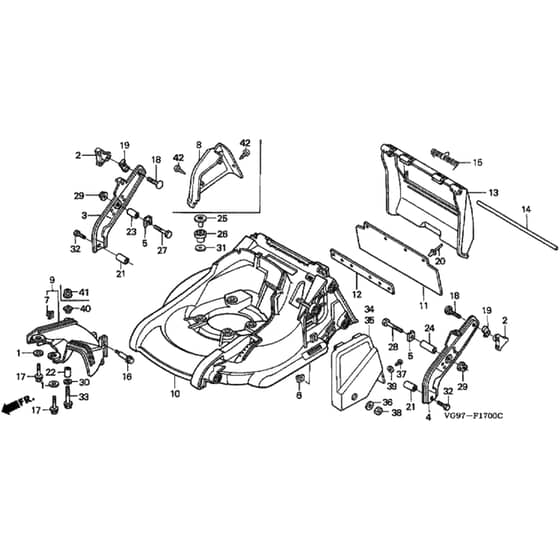

Honda HRB475C - PDEE - MZCE 8000001-8999999 Cutter Housing Diagram

Name: Honda HRB475C - PDEE - MZCE 8000001-8999999 Cutter Housing Diagram
SKU: hrb475c_pdee_mzce_8000001_8999999_cutter_housing-group
Price: 0.81 GBP
Availability: InStock

Part No. hrb475c_pdee_mzce_8000001_8999999_cutter_housing-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB475C - PDEE - MZCE 8000001-8999999 Cutter Housing Diagram

Description

Honda HRB475C - PDEE Rotary Mower Parts Diagram

	Part No.	Details
1	HP53101-GN5-900 Available to backorder	Washer	£6.20 £5.17
2	HP53125-VA3-680 In stock	Handle Grip	£13.85 £11.54
3	HP53130-VE0-000ZB Available to backorder	Handle Stay	£35.83 £29.86
5	HP53137-VE2-000 Available to backorder	Handle Stay Holder	£8.12 £6.77
7	HP61304-958-003 In stock	Nut	£8.28 £6.90
9	HP76105-VE0-000ZA Available to backorder	Guide Scroll Assy	£84.36 £70.30
10	HP76111-VE0-L01 Available to backorder	Mower Housing	£168.72 £140.60
12	HP76119-VE0-763 Available to backorder	Shield Plate	£14.71 £12.26
13	HP76281-VE0-000ZA Available to backorder	Discharge Guard	£96.72 £80.60
14	HP76312-VA3-F40 Available to backorder	Discharge Guard Shaft	£6.31 £5.26
15	HP76284-VG8-000 Available to backorder	Guard Return Spring	£8.11 £6.76
16	HP90101-VA9-K40 Available to backorder	Special Bolt 6Mm	£8.11 £6.76
17	HP90102-VE0-000 In stock	Engine Setting Bolt	£3.54 £2.95
18	HP90133-VE0-B50 Available to backorder	Pan Head Bolt 8 X 42	£1.76 £1.47
19	HP90501-898-000 In stock	Frame Joint Washer	£3.47 £2.89
20	HP90841-MN8-300 Available to backorder	Rivet	£4.66 £3.88
21	HP91551-VE2-000 Available to backorder	Lower Stay Collar	£2.70 £2.25
22	HP91552-VE0-010 Available to backorder	Collar 12.7 X 76.5	£4.88 £4.07
23	HP91557-VE0-000 Available to backorder	Arm Collar	£13.74 £11.45
24	HP91558-VE0-000 Available to backorder	Collar 12.7 X 42.5	£2.15 £1.79
25	HP91651-VE0-750 Available to backorder	Engine Bed Collar	£9.85 £8.21
26	HP91652-VE0-000 In stock	Adiabatic Collar	£7.97 £6.64
27	HP92101-080450A Available to backorder	Bolt	£2.82 £2.35
28	HP92101-080600A Available to backorder	Bolt	£1.74 £1.45
29	HP94050-08000 In stock	Flange Nut 8Mm	£3.37 £2.81
30	HP94101-08800 Available to backorder	Plain Washer 8Mm	£0.97 £0.81
31	HP94103-08800 Available to backorder	Plain Washer 8Mm	£0.97 £0.81
32	HP95701-0802200 Available to backorder	Flange Bolt 8 X 22	£2.03 £1.69

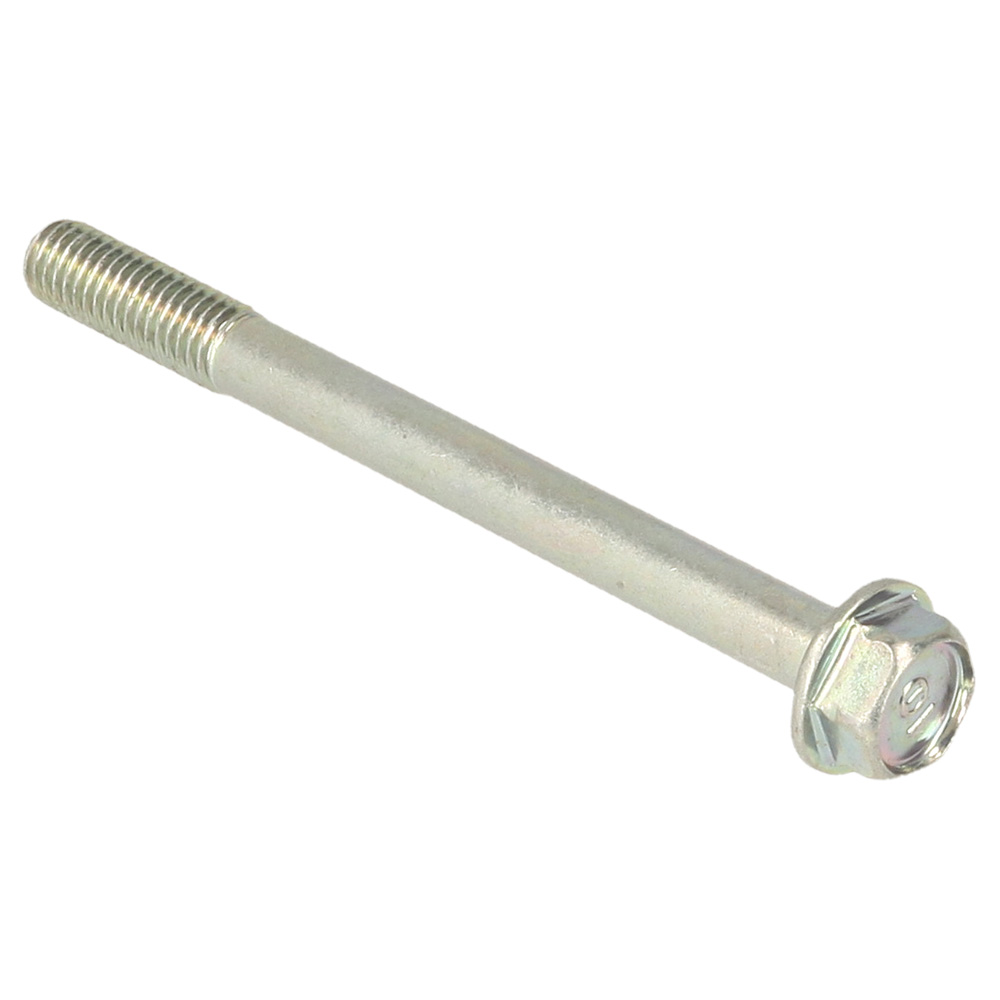

33	HP95701-0809000 Available to backorder	Bolt	£3.14 £2.62
40	HP61304-165-013 Available to backorder	Head Light Set Nut	£8.46 £7.05
