Honda HRB475 - SXG - MZAZ 8000001-8099999 Recoil Starter Diagram

Name: Honda HRB475 - SXG - MZAZ 8000001-8099999 Recoil Starter Diagram
SKU: hrb475_sxg_mzaz_8000001_8099999_recoil_starter-group
Price: 2.18 GBP
Availability: InStock

Part No. hrb475_sxg_mzaz_8000001_8099999_recoil_starter-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

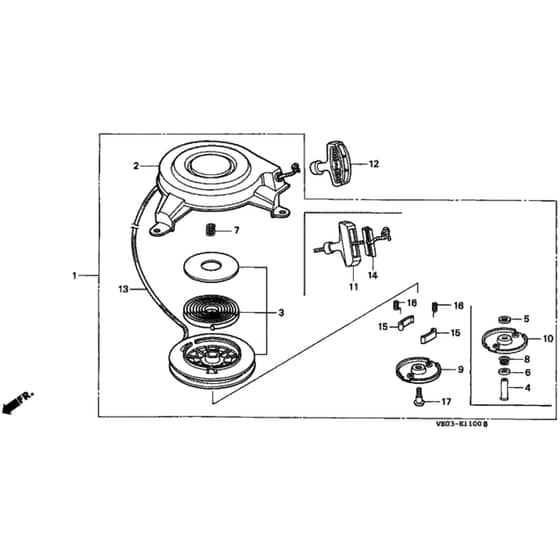

Honda HRB475 - SXG - MZAZ 8000001-8099999 Recoil Starter Diagram

Description

Honda HRB475 - SXG Rotary Mower Parts Diagram

	Part No.	Details
1	HP28400-ZG9-M10 Available to backorder	Recoil Assy	£54.31 £45.26
2	HP28402-ZG9-M00 Available to backorder	Housing Assy	£48.56 £40.47
3	HP28415-ZE6-T02 Available to backorder	Pulley & Spring Assy	£54.62 £45.52
7	HP28441-ZE6-T02 Available to backorder	Brake Spring	£2.62 £2.18
9	HP28444-ZE6-T02 Available to backorder	Retainer	£11.83 £9.86
12	HP28461-ZE7-T01 In stock	Recoil Starter Handle	£6.95 £5.79
13	HP28462-ZG9-802 Available to backorder	Recoil Starter Rope	£11.82 £9.85
15	HP28485-ZE6-T02 Available to backorder	Dog	£6.36 £5.30
16	HP28486-ZE6-T02 Available to backorder	Dog Spring	£3.78 £3.15
17	HP28488-ZE6-T02 Available to backorder	Centre Screw	£7.46 £6.22
