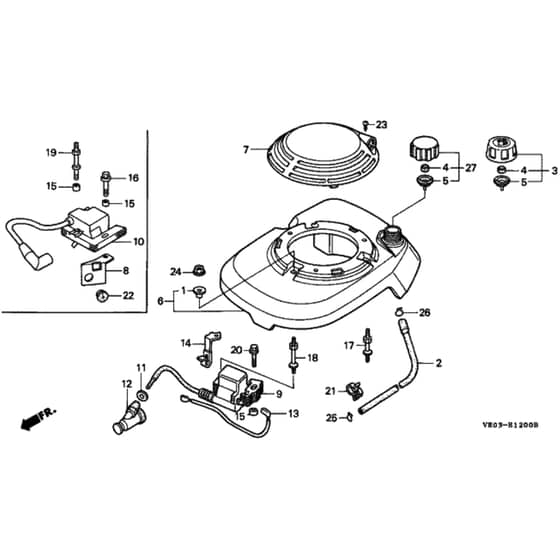

Honda HRB475 - SE - MZAZ 8000001-8099999 Fan Cover Diagram

Name: Honda HRB475 - SE - MZAZ 8000001-8099999 Fan Cover Diagram
SKU: hrb475_se_mzaz_8000001_8099999_fan_cover-group
Price: 0.9 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB475 - SE - MZAZ 8000001-8099999 Fan Cover Diagram

Description

Honda HRB475 - SE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP17216-PE2-003 Available to backorder	Collar	£5.87 £4.89
3	HP17620-ZG9-000 Available to backorder	Fuel Cap	£11.93 £9.94
4	HP17622-888-010 In stock	Breather Sponge	£1.50 £1.25
5	HP17624-ZE7-000 Available to backorder	Fuel Cap Gasket	£3.40 £2.83
6	HP19610-ZG9-M01 Available to backorder	Fan Cover Assy	£78.84 £65.70
7	HP19615-ZG9-M00ZB Available to backorder	Hood	£38.28 £31.90
9	HP30500-ZE7-063 Available to backorder	Ignition Coil Assy	£142.20 £118.50
11	HP30505-ZE6-000 Available to backorder	Grommet	£3.02 £2.52
12	HP30700-ZE6-773 Available to backorder	Terminal Assy	£19.81 £16.51
17	HP90041-ZG9-M00 Available to backorder	Stud	£12.31 £10.26
20	HP90121-952-000 Available to backorder	Flange Bolt 6 X 25	£2.84 £2.37
21	HP90682-959-661 Available to backorder	Cable Clip 9mm	£3.04 £2.53
23	HP93913-24580 Out of stock	Screw	£1.50 £1.25
24	HP94050-06000 In stock	Flange Nut 6mm	£3.22 £2.68
25	HP95002-02080 Available to backorder	Tube Clip	£1.08 £0.90
26	HP95002-02100 In stock	Tube Clip	£1.22 £1.02
27	HP17620-ZE7-000 Available to backorder	Fuel Cap Assy	£15.32 £12.77
