Honda HRB475 - SE - MZAZ 8000001-8099999 Brake Arm/Rotary Blade Diagram

Description

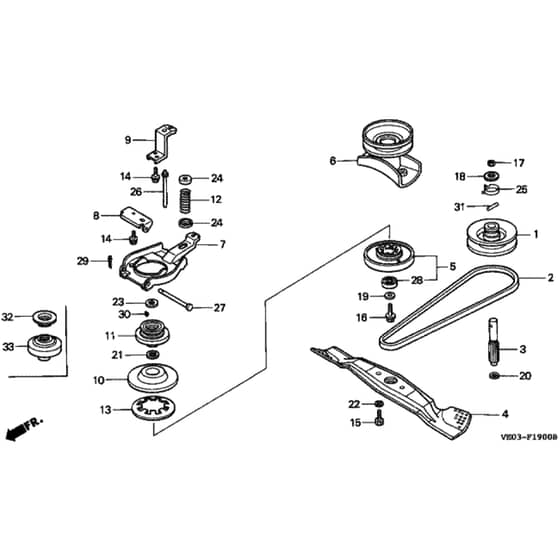

Honda HRB475 - SE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP22420-VE0-800 Available to backorder	Drive Pulley	£42.28 £35.23
2	HP22431-VE0-800 Available to backorder	Belt	£35.12 £29.27
3	HP23411-VA9-K40 Available to backorder	Drive Gear	£57.24 £47.70
4	HP72511-VE0-N00 In stock	Blade	£48.72 £40.60
5	HP72600-VE0-000 Available to backorder	Blade Holder Assy	£86.40 £72.00
7	HP75130-VE0-020 Available to backorder	Brake Arm Assy	£88.08 £73.40
6	HP72610-VE0-A50 Available to backorder	Blade Holder Assy	£47.54 £39.62
9	HP75149-VE0-000 Available to backorder	Holder	£24.72 £20.60
15	HP90105-960-710 In stock	Blade Bolt (ser no. 8025357 +)	£2.76 £2.30
15	HP90104-VA5-640 Available to backorder	Blade Bolt (up to ser no. 8025356)	£5.72 £4.77
16	HP90105-VA3-J01 In stock	Bolt (ser no. 8025357 +)	£4.08 £3.40
16	HP90105-960-003 Available to backorder	Bolt (up to ser no. 8025356)	£1.37 £1.14
22	HP90481-430-000 In stock	Washer	£1.20 £1.00
