Honda HRB475 - QXE - MZAZ 8000001-8099999 Brake Arm/Rotary Blade Diagram

Name: Honda HRB475 - QXE - MZAZ 8000001-8099999 Brake Arm/Rotary Blade Diagram
SKU: hrb475_qxe_mzaz_8000001_8099999_brake_arm_rotary_blade-group
Price: 0.49 GBP
Availability: InStock

Part No. hrb475_qxe_mzaz_8000001_8099999_brake_arm_rotary_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB475 - QXE - MZAZ 8000001-8099999 Brake Arm/Rotary Blade Diagram

Description

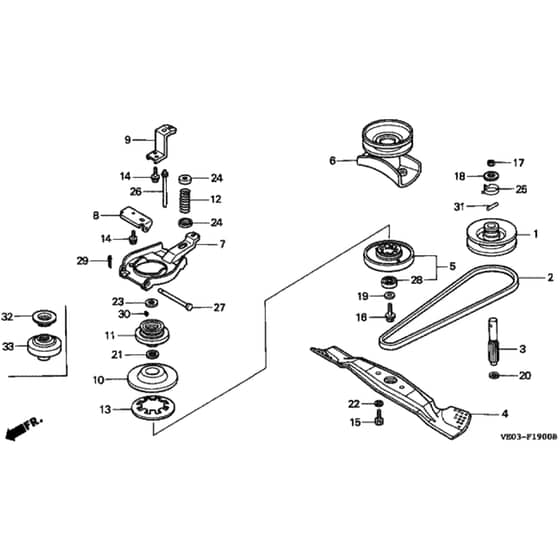

Honda HRB475 - QXE Rotary Mower Parts Diagram

	Part No.	Details
4	HP72511-VE0-N00 In stock	Blade	£52.20 £43.50
5	HP72600-VE0-000 Available to backorder	Blade Holder Assy	£85.68 £71.40
7	HP75130-VE0-020 In stock	Brake Arm Assy	£86.88 £72.40
8	HP75148-VE0-000 Available to backorder	Clutch Arm Hinge	£7.24 £6.03
9	HP75149-VE0-000 Available to backorder	Holder	£25.57 £21.31
10	HP75151-VE0-000 Available to backorder	Driven Disk	£161.04 £134.20
11	HP06751-VE1-305 In stock	Pulley Kit	£119.52 £99.60
12	HP75182-VE0-000 Available to backorder	Clutch Return Spring	£12.12 £10.10
13	HP75183-VE0-000 Available to backorder	Clutch Spring	£34.34 £28.62
14	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.77 £3.14
15	HP90105-960-710 In stock	Bolt (ser no. 8025357 +)	£2.99 £2.49
15	HP90104-VA5-640 Available to backorder	Bolt (up to ser no. 8025356)	£6.22 £5.18
16	HP90105-960-003 Available to backorder	Blade Bolt	£1.39 £1.16
16	HP90105-VA3-J01 In stock	Blade Bolt (ser no. 8025357 +)	£4.38 £3.65
19	HP90409-952-000 In stock	Washer 10mm	£1.21 £1.01
20	HP90443-844-000 In stock	Thrust Washer 8mm	£2.17 £1.81
21	HP90453-KZ4-000 Available to backorder	Thrust Washer	£5.14 £4.28
22	HP90481-430-000 In stock	Washer	£1.28 £1.07
23	HP90501-952-010 Available to backorder	Thrust Washer	£5.44 £4.53
24	HP90557-461-000 Available to backorder	Washer	£2.03 £1.69
26	HP90701-VE0-000 Available to backorder	Spring Guide Pin	£17.44 £14.53
27	HP90756-735-000 Available to backorder	Bonnet Hinge Pin	£8.12 £6.77
28	HP91102-VA4-013 In stock	Bearing	£27.20 £22.67
29	HP94201-20150 Available to backorder	Split Pin 2.0 X 15	£1.39 £1.16
30	HP94401-16150 In stock	Woodruff Key	£0.59 £0.49
32	HP75161-VE2-801 Available to backorder	Pulley	£68.64 £57.20
33	HP75162-VE2-801 Available to backorder	Pulley	£83.76 £69.80
