Honda HRB425C1 - SQEE - MZCF 8000001-8499999 Roller Diagram

Description

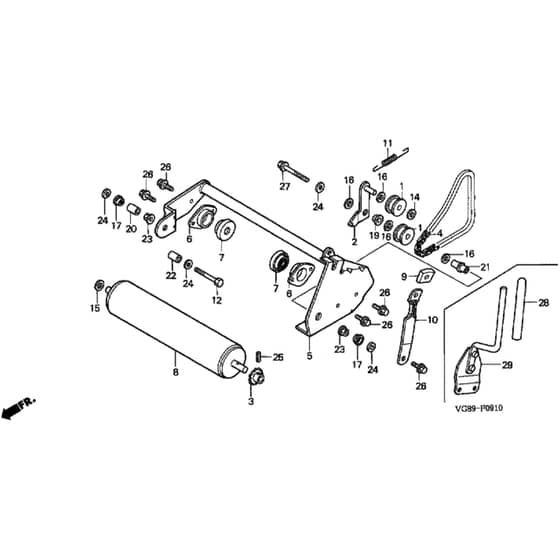

Honda HRB425C1 - SQEE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HPPB12166 Out of stock	Tension Roller	£12.72 £10.60
2	HP22520-VG8-850 Out of stock	Tension Arm Assy	£59.21 £49.34
3	HP23281-VG8-850 In stock	Drive Sprocket	£45.72 £38.10
4	HP23853-VG8-851 In stock	Roller Chain	£71.16 £59.30
6	HP42761-VE0-M11 In stock	Bearing Holder Assy	£12.36 £10.30
7	HP42775-VE0-M10 In stock	Roller Bearing Assy	£34.32 £28.60
8	HP42780-VA9-F60 Out of stock	Roller	£104.76 £87.30
11	HP76122-VE0-M10 Out of stock	Tension Arm Spring	£7.94 £6.62
12	HP90101-VE0-M10 Out of stock	Cover Bolt	£1.75 £1.46
14	HP90407-VA9-F60 Out of stock	Special Washer 12Mm	£1.39 £1.16
15	HP90455-VA2-000 In stock	Wheel Washer	£3.07 £2.56
16	HP90459-107-000 In stock	Washer	£2.77 £2.31
17	HP90501-VE0-M10 In stock	Cover Setting Washer	£3.43 £2.86
19	HP91555-VA9-F60 Out of stock	Arm Collar	£6.18 £5.15
20	HP91555-VG8-850 Out of stock	Collar	£4.90 £4.08
21	HP91556-VA9-F60 Out of stock	Roller Collar	£6.18 £5.15
22	HP91558-VG8-000 Out of stock	Collar 12.7 X 44.5	£5.66 £4.72
23	HP94050-08000 Out of stock	Flange Nut 8Mm	£4.08 £3.40
24	HP94103-08000 Out of stock	Plain Washer 8Mm	£0.48 £0.40
25	HP94305-50282 Out of stock	Spring Pin 5 X 28	£3.18 £2.65
26	HP95701-0601200 In stock	Bolt	£1.39 £1.16
27	HP95801-0809000 Out of stock	Flange Bolt 8 X 90	£3.97 £3.31
28	HP42952-VG8-870 Out of stock	Adjuster Grip	£2.45 £2.04
29	HP42961-VG8-870 Out of stock	Height Adjuster Lever	£23.35 £19.46
