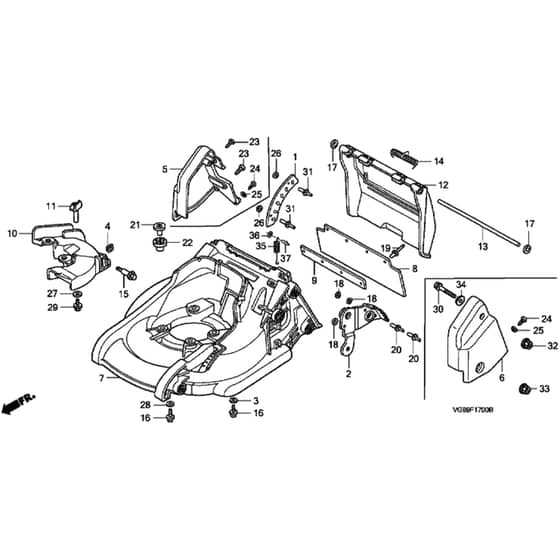

Honda HRB425C1 - SQE - MZCF 8000001-8499999 Cutter Housing Diagram

Name: Honda HRB425C1 - SQE - MZCF 8000001-8499999 Cutter Housing Diagram
SKU: hrb425c1_sqe_mzcf_8000001_8499999_cutter_housing-group
Price: 0.8 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB425C1 - SQE - MZCF 8000001-8499999 Cutter Housing Diagram

Description

Honda HRB425C1 - SQE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HP42995-VG8-850 Available to backorder	Adjuster Panel	£35.60 £29.67
3	HP53101-GN5-900 Available to backorder	Washer	£6.30 £5.25
4	HP61304-958-003 In stock	Nut	£6.16 £5.13
5	HP63231-VG8-850ZA Available to backorder	Cover	£100.30 £83.58
7	HP76110-VG8-850 Available to backorder	Mower Housing	£170.16 £141.80
10	HP76142-VG8-000ZA Available to backorder	Guide Scroll	£74.16 £61.80
11	HP76158-VG8-000 Available to backorder	Bracket	£11.12 £9.27
12	HP76281-VG8-000ZA Available to backorder	Discharge Guard	£96.00 £80.00
13	HP76282-VG8-000 Available to backorder	Guard Shaft	£5.40 £4.50
14	HP76284-VG8-000 Available to backorder	Guard Return Spring	£7.68 £6.40
15	HP90101-VA9-K40 Available to backorder	Special Bolt 6Mm	£7.84 £6.53
16	HP90102-VE0-000 In stock	Engine Setting Bolt	£3.30 £2.75
17	HP90407-VA9-K40 In stock	Special Washer 8Mm	£1.68 £1.40
18	HP90483-178-000 Available to backorder	Washer	£3.43 £2.86
19	HP90851-VA9-K41 Available to backorder	Rivet 4.8 X 14	£4.94 £4.12
20	HP90852-VA9-K41 Available to backorder	Rivet 4.8 X 17.2	£1.61 £1.34
21	HP91651-VE0-010 Available to backorder	Engine Bed Collar	£4.86 £4.05
22	HP91652-VE0-000 In stock	Adiabatic Collar	£7.32 £6.10
23	HP93903-25210 In stock	Screw	£1.86 £1.55
24	HP93911-14110 Available to backorder	Tapping Screw	£1.80 £1.50
25	HP94101-04000 Available to backorder	Plain Washer 4Mm	£0.96 £0.80
27	HP94103-06800 Available to backorder	Plain Washer 6Mm	£0.96 £0.80
28	HP94103-08800 Available to backorder	Plain Washer 8Mm	£0.96 £0.80
29	HP95701-0601208 Available to backorder	Flange Bolt 6 X 12	£1.31 £1.09
32	HP94050-06000 In stock	Flange Nut 6Mm	£3.22 £2.68
33	HP94050-08000 In stock	Flange Nut 8Mm	£3.08 £2.57
