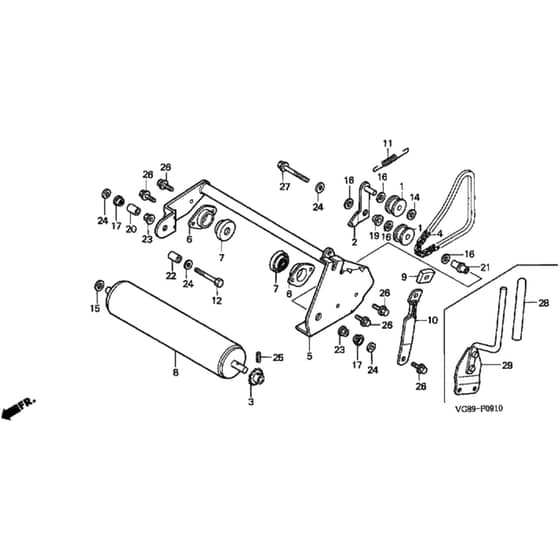

Honda HRB425C1 - QXEE - MZCF 8000001-8499999 Roller Diagram

Description

Honda HRB425C1 - QXEE Rotary Mower Parts Diagram

	Part No.	Details
1	HPPB12166 In stock	Tension Roller	£12.64 £10.53
2	HP22520-VG8-850 Available to backorder	Tension Arm Assy	£59.21 £49.34
3	HP23281-VG8-850 In stock	Drive Sprocket	£48.30 £40.25
4	HP23853-VG8-851 In stock	Roller Chain	£72.50 £60.42
6	HP42761-VE0-M11 Available to backorder	Bearing Holder Assy	£13.02 £10.85
7	HP42775-VE0-M10 In stock	Roller Bearing Assy	£36.19 £30.16
8	HP42780-VA9-F60 In stock	Roller	£115.21 £96.01
11	HP76122-VE0-M10 In stock	Tension Arm Spring	£8.70 £7.25
12	HP90101-VE0-M10 Available to backorder	Cover Bolt	£1.76 £1.47
14	HP90407-VA9-F60 In stock	Special Washer 12Mm	£1.27 £1.06
15	HP90455-VA2-000 In stock	Wheel Washer	£3.08 £2.57
16	HP90459-107-000 In stock	Washer	£5.12 £4.27
17	HP90501-VE0-M10 In stock	Cover Setting Washer	£3.65 £3.04
19	HP91555-VA9-F60 In stock	Arm Collar	£6.54 £5.45
20	HP91555-VG8-850 Available to backorder	Collar	£4.91 £4.09
21	HP91556-VA9-F60 In stock	Roller Collar	£6.54 £5.45
22	HP91558-VG8-000 Available to backorder	Collar 12.7 X 44.5	£5.66 £4.72
23	HP94050-08000 In stock	Flange Nut 8Mm	£3.37 £2.81
24	HP94103-08000 In stock	Plain Washer 8Mm	£0.56 £0.47
25	HP94305-50282 In stock	Spring Pin 5 X 28	£3.23 £2.69
26	HP95701-0601200 In stock	Bolt	£0.97 £0.81
27	HP95801-0809000 Available to backorder	Flange Bolt 8 X 90	£3.14 £2.62
28	HP42952-VG8-870 Available to backorder	Adjuster Grip	£2.36 £1.97
29	HP42961-VG8-870 In stock	Height Adjuster Lever	£24.66 £20.55
