Honda HRB425C1 - QXE - MZCF 8000001-8499999 Roller Diagram

Description

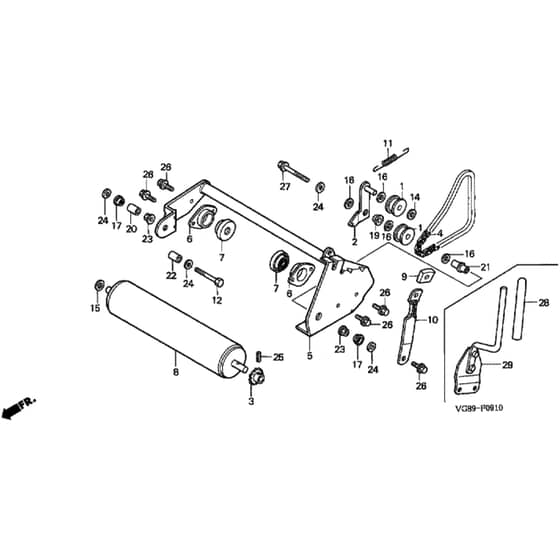

Honda HRB425C1 - QXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HPPB12166 Available to backorder	Tension Roller	£11.78 £9.82
2	HP22520-VG8-850 Available to backorder	Tension Arm Assy	£57.24 £47.70
3	HP23281-VG8-850 In stock	Drive Sprocket	£45.72 £38.10
4	HP23853-VG8-851 Available to backorder	Roller Chain	£71.16 £59.30
6	HP42761-VE0-M11 In stock	Bearing Holder Assy	£12.14 £10.12
7	HP42775-VE0-M10 In stock	Roller Bearing Assy	£34.26 £28.55
8	HP42780-VA9-F60 In stock	Roller	£106.92 £89.10
11	HP76122-VE0-M10 In stock	Tension Arm Spring	£8.12 £6.77
12	HP90101-VE0-M10 Available to backorder	Cover Bolt	£1.86 £1.55
14	HP90407-VA9-F60 In stock	Special Washer 12Mm	£1.16 £0.97
15	HP90455-VA2-000 Available to backorder	Wheel Washer	£2.88 £2.40
16	HP90459-107-000 In stock	Washer	£4.78 £3.98
17	HP90501-VE0-M10 In stock	Cover Setting Washer	£3.36 £2.80
19	HP91555-VA9-F60 In stock	Arm Collar	£6.00 £5.00
20	HP91555-VG8-850 Available to backorder	Collar	£4.74 £3.95
21	HP91556-VA9-F60 In stock	Roller Collar	£6.00 £5.00
22	HP91558-VG8-000 Available to backorder	Collar 12.7 X 44.5	£5.66 £4.72
23	HP94050-08000 In stock	Flange Nut 8Mm	£3.08 £2.57
24	HP94103-08000 In stock	Plain Washer 8Mm	£0.47 £0.39
25	HP94305-50282 In stock	Spring Pin 5 X 28	£3.00 £2.50
26	HP95701-0601200 In stock	Bolt	£0.90 £0.75
27	HP95801-0809000 Available to backorder	Flange Bolt 8 X 90	£3.04 £2.53
28	HP42952-VG8-870 Available to backorder	Adjuster Grip	£2.24 £1.87
29	HP42961-VG8-870 Available to backorder	Height Adjuster Lever	£22.58 £18.82
