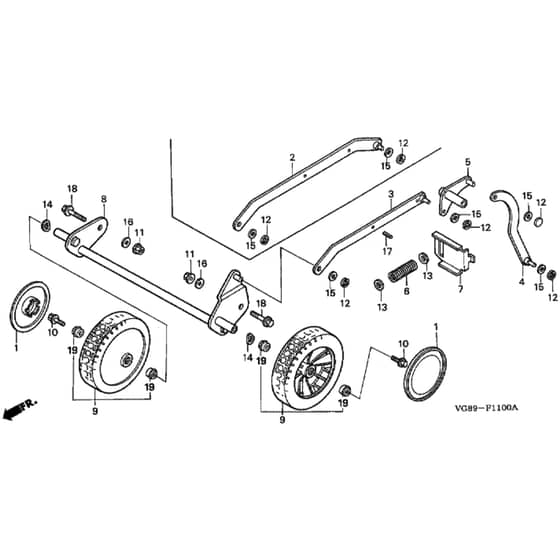

Honda HRB425C1 - QDEE - MZCF 8000001-8499999 Front Wheel Diagram

Name: Honda HRB425C1 - QDEE - MZCF 8000001-8499999 Front Wheel Diagram
SKU: hrb425c1_qdee_mzcf_8000001_8499999_front_wheel-group
Price: 0.47 GBP
Availability: InStock

Part No. hrb425c1_qdee_mzcf_8000001_8499999_front_wheel-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB425C1 - QDEE - MZCF 8000001-8499999 Front Wheel Diagram

Description

Honda HRB425C1 - QDEE Rotary Mower Parts Diagram

	Part No.	Details
1	HP42719-VA9-B51ZA In stock	Hub Cap	£3.47 £2.89
3	HP42963-VG8-870 Available to backorder	Adjuster Arm	£18.94 £15.78
4	HP42964-VG8-870 Available to backorder	Adjuster Arm	£16.80 £14.00
5	HP42991-VG8-870 Available to backorder	Height Adjuster Arm	£15.64 £13.03
6	HP42992-VE0-000 Available to backorder	Balancer Spring	£29.93 £24.94
7	HP42993-VG8-000 Available to backorder	Seat Spring	£9.95 £8.29
8	HP44310-VG8-000 Available to backorder	Front Shaft	£72.00 £60.00
9	HP44710-VA9-B60ZB In stock	Front Wheel	£50.36 £41.97
10	HP90110-VA4-000 In stock	Wheel Bolt	£6.44 £5.37
11	HP90115-659-003 In stock	Nut	£1.19 £0.99
12	HP90407-VA9-K40 In stock	Special Washer 8Mm	£1.85 £1.54
13	HP90501-VG8-000 Available to backorder	Spring Washer	£1.78 £1.48
14	HP90455-VA2-000 In stock	Wheel Washer	£3.08 £2.57
15	HP94101-08000 Available to backorder	Plain Washer 8Mm	£0.97 £0.81
16	HP94103-08000 In stock	Plain Washer 8Mm	£0.56 £0.47
17	HP94305-40282 Available to backorder	Spring Pin 4 X 28	£2.40 £2.00
18	HP95801-0804500 Available to backorder	Flange Bolt 8 X 45	£2.44 £2.03
19	HP91051-VE0-750 In stock	Bearing	£12.20 £10.17
