Honda HRB425C1 - QDEE - MZCF 8000001-8499999 Blade Diagram

Name: Honda HRB425C1 - QDEE - MZCF 8000001-8499999 Blade Diagram
SKU: hrb425c1_qdee_mzcf_8000001_8499999_blade_pdee_qdee_sdee_sqee_-gr
Price: 0.49 GBP
Availability: InStock

Part No. hrb425c1_qdee_mzcf_8000001_8499999_blade_pdee_qdee_sdee_sqee_-gr

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB425C1 - QDEE - MZCF 8000001-8499999 Blade Diagram

Description

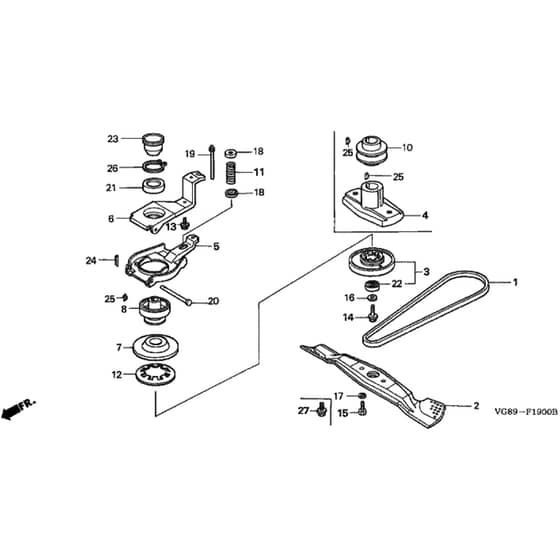

Honda HRB425C1 - QDEE Rotary Mower Parts Diagram

	Part No.	Details
1	HP23161-VG8-850 In stock	Belt	£31.85 £26.54
2	HP72511-VG8-A50 Available to backorder	Blade	£41.17 £34.31
4	HP72611-VG8-950 Available to backorder	Blade Holder	£46.84 £39.03
14	HP90105-VA3-J01 In stock	Bolt Hex 10 X 25	£4.38 £3.65
15	HP90105-960-710 In stock	Blade Bolt	£2.99 £2.49
16	HP90409-952-000 In stock	Washer 10Mm	£1.21 £1.01
17	HP90481-430-000 In stock	Washer	£1.28 £1.07
25	HP94401-16150 In stock	Woodruff Key	£0.59 £0.49
27	HP90105-VH3-K11 In stock	Flange Bolt 10 X 20	£2.99 £2.49
