Honda HRB425C1 - PXE - MZCF 8100001-8499999 Handle Pipe Diagram

Name: Honda HRB425C1 - PXE - MZCF 8100001-8499999 Handle Pipe Diagram
SKU: hrb425c1_pxe_mzcf_8100001_8499999_handle_pipe_pqx_pxe_qxe_sxe_-g
Price: 0.47 GBP
Availability: InStock

Part No. hrb425c1_pxe_mzcf_8100001_8499999_handle_pipe_pqx_pxe_qxe_sxe_-g

Skip to the end of the images gallery

Skip to the beginning of the images gallery

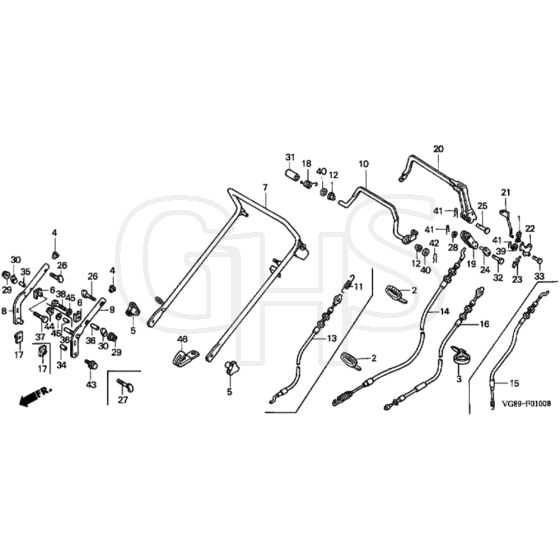

Honda HRB425C1 - PXE - MZCF 8100001-8499999 Handle Pipe Diagram

Description

Honda HRB425C1 - PXE Rotary Mower Parts Diagram

	Part No.	Details
1	HP16956-892-000 Available to backorder	Rod Joint	£8.39 £6.99
2	HP32901-VE0-850 Available to backorder	Cable Tie	£6.20 £5.17
3	HP32901-952-770 Available to backorder	Cable Tie	£2.33 £1.94
4	HP53115-VA9-K40 Available to backorder	Lower Handle Cap	£0.59 £0.49
5	HP53125-VA3-680 In stock	Handle Grip	£13.85 £11.54
6	HP53137-VE2-000 Available to backorder	Handle Stay Holder	£8.12 £6.77
7	HP53110-VG8-000ZA Available to backorder	Handle	£132.36 £110.30
8	HP53150-VG8-000ZA Available to backorder	Lower Handle	£42.37 £35.31
9	HP53160-VG8-000ZA Available to backorder	Lower Handle	£48.56 £40.47
9	HP53160-VG8-870ZA Available to backorder	Lower Handle	£42.37 £35.31
16	HP54530-VE0-M01 In stock	Roto-Stop Cable	£29.83 £24.86
17	HP61304-165-013 Available to backorder	Head Light Set Nut	£8.46 £7.05
18	HP75118-VA3-J00 In stock	Stop Return Spring R H	£8.56 £7.13
19	HP75128-VE0-L00 Available to backorder	Cable Arm	£16.03 £13.36
20	HP75161-VE0-L01 Available to backorder	Roto-Stop Lever Assy	£69.96 £58.30
21	HP75165-VE0-L00 In stock	Ratchet Push Rod	£12.05 £10.04
23	HP75168-VA4-000 In stock	Pawl Spring	£6.90 £5.75
22	HP75166-VA3-J01 Available to backorder	Lock Lever	£7.14 £5.95
25	HP90106-VA4-000 Available to backorder	Pin	£10.40 £8.67
26	HP90109-VF0-000 In stock	Handle Bolt	£10.76 £8.97
29	HP90443-107-000 Available to backorder	Nut	£8.23 £6.86
29	HP94050-08000 In stock	Flange Nut 8Mm	£3.37 £2.81
30	HP90501-898-000 In stock	Frame Joint Washer	£3.47 £2.89
31	HP90552-VA3-J00 Available to backorder	Collar 8 X 11 X 13.5	£7.00 £5.83
32	HP90754-VA9-P40 In stock	Cable Joint Pin	£3.56 £2.97
33	HP90753-VA3-J00 Available to backorder	Lever Hinge Lock Pin	£5.06 £4.22
34	HP91551-VE2-000 Available to backorder	Lower Stay Collar	£2.70 £2.25
35	HP91554-VG8-000 Available to backorder	Collar 12.7 X 25.5	£3.35 £2.79
36	HP91558-VG8-000 Available to backorder	Collar 12.7 X 44.5	£5.66 £4.72
37	HP92101-080600A Available to backorder	Bolt	£1.74 £1.45
39	HP90407-952-300 Available to backorder	Special Washer 6Mm	£4.24 £3.53
41	HP94251-06000 In stock	Lock Pin 6Mm	£1.22 £1.02
42	HP94251-08000 In stock	Lock Pin 8Mm	£1.84 £1.53
43	HP95701-0802200 Available to backorder	Flange Bolt 8 X 22	£2.03 £1.69
45	HP94103-08000 In stock	Plain Washer 8Mm	£0.56 £0.47
