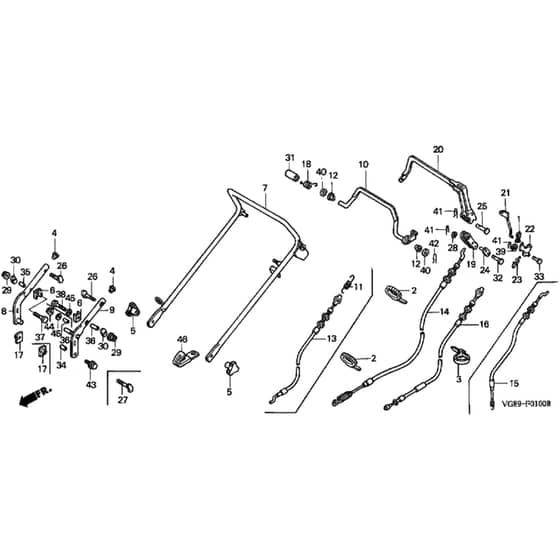

Honda HRB425C1 - PQXE - MZCF 8100001-8499999 Handle Pipe Diagram

Name: Honda HRB425C1 - PQXE - MZCF 8100001-8499999 Handle Pipe Diagram
SKU: hrb425c1_pqxe_mzcf_8100001_8499999_handle_pipe_pqxe_pxee_qxee_sx
Price: 0.5 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB425C1 - PQXE - MZCF 8100001-8499999 Handle Pipe Diagram

Description

Honda HRB425C1 - PQXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HP32901-VE0-850 Available to backorder	Cable Tie	£6.30 £5.25
3	HP32901-952-770 Available to backorder	Cable Tie	£2.36 £1.97
4	HP53115-VA9-K40 Available to backorder	Lower Handle Cap	£0.60 £0.50
5	HP53125-VA3-680 In stock	Handle Grip	£12.72 £10.60
6	HP53137-VE2-000 Available to backorder	Handle Stay Holder	£8.24 £6.87
7	HP53110-VG8-000ZA Available to backorder	Handle	£127.08 £105.90
8	HP53150-VG8-000ZA Available to backorder	Lower Handle	£43.01 £35.84
9	HP53160-VG8-000ZA Available to backorder	Lower Handle	£46.94 £39.12
9	HP53160-VG8-870ZA Available to backorder	Lower Handle	£43.01 £35.84
16	HP54530-VE0-M01 In stock	Roto-Stop Cable	£27.84 £23.20
17	HP61304-165-013 Available to backorder	Head Light Set Nut	£5.66 £4.72
18	HP75118-VA3-J00 In stock	Stop Return Spring R H	£7.82 £6.52
19	HP75128-VE0-L00 Available to backorder	Cable Arm	£15.50 £12.92
22	HP75166-VA3-J01 Available to backorder	Lock Lever	£23.56 £19.63
1	HP16956-892-000 Available to backorder	Rod Joint	£8.52 £7.10
20	HP75161-VE0-L01 Available to backorder	Roto-Stop Lever Assy	£72.36 £60.30
21	HP75165-VE0-L00 In stock	Ratchet Push Rod	£11.04 £9.20
23	HP75168-VA4-000 In stock	Pawl Spring	£6.48 £5.40
25	HP90106-VA4-800 Available to backorder	Clutch Lever Pin	£11.96 £9.97
26	HP90109-VF0-000 In stock	Handle Bolt	£10.04 £8.37
31	HP90552-VA3-J00 Available to backorder	Collar 8 X 11 X 13.5	£6.76 £5.63
32	HP90754-VA9-P40 In stock	Cable Joint Pin	£3.32 £2.77
33	HP90753-VA3-J00 Available to backorder	Lever Hinge Lock Pin	£4.80 £4.00
34	HP91551-VE2-000 Available to backorder	Lower Stay Collar	£2.74 £2.28
35	HP91554-VG8-000 Available to backorder	Collar 12.7 X 25.5	£3.40 £2.83
36	HP91558-VG8-000 Available to backorder	Collar 12.7 X 44.5	£5.66 £4.72
37	HP92101-080600A Available to backorder	Bolt	£1.76 £1.47
39	HP90407-952-300 Available to backorder	Special Washer 6Mm	£4.10 £3.42
40	HP94101-08000 Available to backorder	Plain Washer 8Mm	£0.96 £0.80
41	HP94251-06000 In stock	Lock Pin 6Mm	£1.14 £0.95
42	HP94251-08000 In stock	Lock Pin 8Mm	£1.86 £1.55
43	HP95701-0802200 Available to backorder	Flange Bolt 8 X 22	£2.00 £1.67
