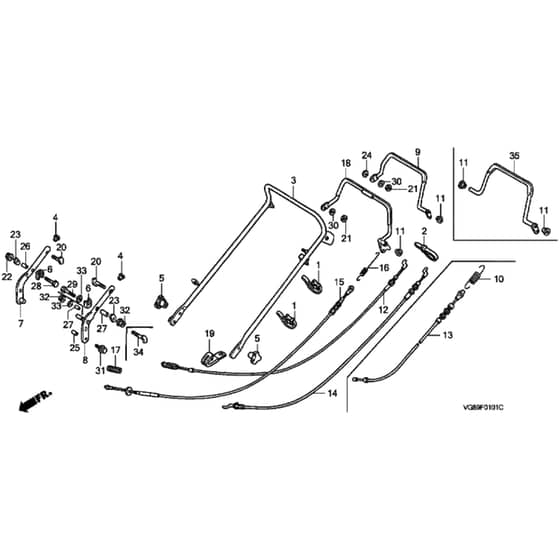

Honda HRB425C1 - PDE - MZCF 8100001-8499999 Handle Pipe Diagram

Name: Honda HRB425C1 - PDE - MZCF 8100001-8499999 Handle Pipe Diagram
SKU: hrb425c1_pde_mzcf_8100001_8499999_handle_pipe_pde_qde_sde_sqe_-g
Price: 0.47 GBP
Availability: InStock

Part No. hrb425c1_pde_mzcf_8100001_8499999_handle_pipe_pde_qde_sde_sqe_-g

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB425C1 - PDE - MZCF 8100001-8499999 Handle Pipe Diagram

Description

Honda HRB425C1 - PDE Rotary Mower Parts Diagram

	Part No.	Details
1	HP32901-VE0-850 Available to backorder	Cable Tie	£6.20 £5.17
2	HP32901-952-770 Available to backorder	Cable Tie	£2.33 £1.94
3	HP53110-VG8-750ZA Available to backorder	Handle	£103.56 £86.30
4	HP53115-VA9-K40 Available to backorder	Lower Handle Cap	£0.59 £0.49
5	HP53125-VA3-680 In stock	Handle Grip	£13.85 £11.54
6	HP53137-VE2-000 Available to backorder	Handle Stay Holder	£8.12 £6.77
7	HP53150-VG8-000ZA Available to backorder	Lower Handle	£42.37 £35.31
8	HP53160-VG8-000ZA Available to backorder	Lower Handle	£48.56 £40.47
8	HP53160-VG8-870ZA Available to backorder	Lower Handle	£42.37 £35.31
10	HP54411-VA9-K40 Available to backorder	Clutch Spring	£9.10 £7.58
14	HP54530-VG8-752 Available to backorder	O.P.C Cable	£28.66 £23.88
18	HP75190-VG9-750 Available to backorder	Brake Lever	£98.52 £82.10
20	HP90109-VF0-000 In stock	Handle Bolt	£10.76 £8.97
22	HP90443-107-000 Available to backorder	Nut	£8.23 £6.86
22	HP94050-08000 In stock	Flange Nut 8Mm	£3.37 £2.81
25	HP91551-VE2-000 Available to backorder	Lower Stay Collar	£2.70 £2.25
26	HP91554-VG8-000 Available to backorder	Collar 12.7 X 25.5	£3.35 £2.79
27	HP91558-VG8-000 Available to backorder	Collar 12.7 X 44.5	£5.66 £4.72
28	HP92101-080600A Available to backorder	Bolt	£1.74 £1.45
31	HP95701-0802200 Available to backorder	Flange Bolt 8 X 22	£2.03 £1.69
33	HP94103-08000 In stock	Plain Washer 8Mm	£0.56 £0.47
