Honda HRB425C - SXEE/A - MZCF 8500001-9999999 Blade Diagram

Name: Honda HRB425C - SXEE/A - MZCF 8500001-9999999 Blade Diagram
SKU: hrb425c_sxee_a_mzcf_8500001_9999999_blade_2_-group
Price: 0.49 GBP
Availability: InStock

Part No. hrb425c_sxee_a_mzcf_8500001_9999999_blade_2_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

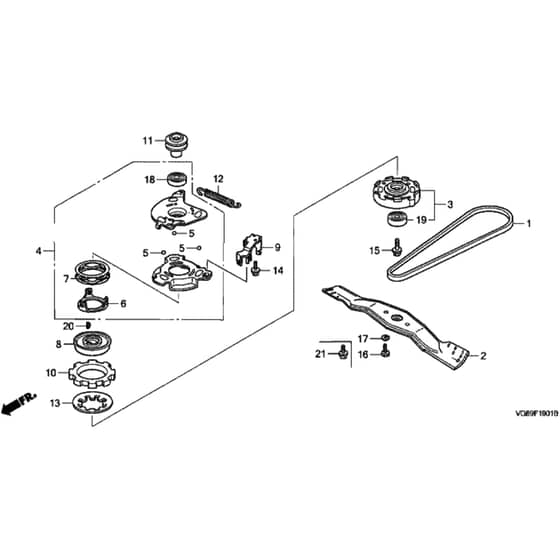

Honda HRB425C - SXEE/A - MZCF 8500001-9999999 Blade Diagram

Description

Honda HRB425C - SXEE/A Rotary Mower Parts Diagram

	Part No.	Details
1	HP23161-VG8-800 Available to backorder	Belt	£25.39 £21.16
2	HP72511-VG8-A50 Available to backorder	Blade	£41.17 £34.31
3	HP72600-VE1-G00 Available to backorder	Blade Holder Assy	£71.04 £59.20
4	HP75110-VE1-R00 Available to backorder	Ball Control Plate	£88.92 £74.10
5	HP75117-VE1-G00 Available to backorder	Bearing	£3.42 £2.85
6	HP75127-VE1-G00 Available to backorder	Spring Hook Plate	£13.38 £11.15
7	HP75132-VE1-G00 Available to backorder	Spring	£10.45 £8.71
8	HP75141-VE1-G00 Available to backorder	Drive Disk	£29.60 £24.67
9	HP75143-VE1-G00 Available to backorder	Return Spring Hook	£8.29 £6.91
10	HP75150-VE1-G02 In stock	Driven Disk Assy	£74.24 £61.87
11	HP75162-VE0-M00 Available to backorder	Pulley	£84.36 £70.30
12	HP75185-VE1-G00 In stock	Clutch Return Spring	£12.35 £10.29
13	HP75183-VE1-G01 In stock	Clutch Spring	£9.74 £8.12
14	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.77 £3.14
15	HP90101-VE1-G00 Available to backorder	Flange Bolt 10 X 24	£2.80 £2.33
16	HP90105-960-710 In stock	Blade Bolt	£2.99 £2.49
17	HP90481-430-000 In stock	Washer	£1.28 £1.07
18	HP91051-VE1-G00 Available to backorder	Bearing	£25.42 £21.18
19	HP91102-VA4-013 In stock	Bearing	£27.20 £22.67
20	HP94401-16150 In stock	Woodruff Key	£0.59 £0.49
