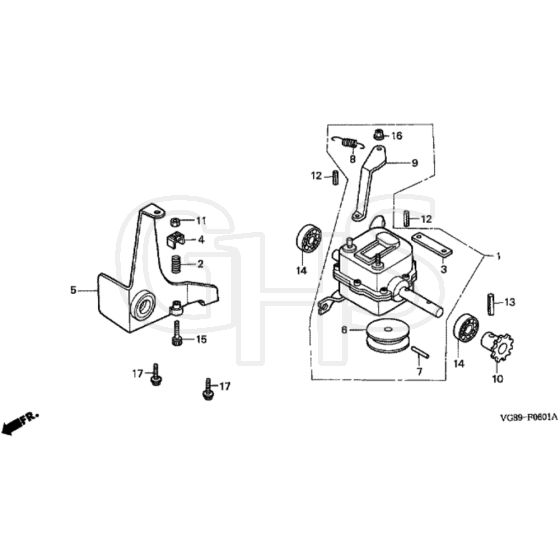

Honda HRB425C - SQEE - MZCF 8000001-8499999 Transmission Case Diagram

Description

Honda HRB425C - SQEE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP04201-VK7-A50 In stock	Transmission Kit	£243.84 £203.20
2	HP17858-VA4-000 In stock	Throttle Lever Spring	£3.80 £3.17
3	HP21284-VG8-851 Available to backorder	Transmission Stopper	£5.29 £4.41
4	HP21557-VA9-F60 Available to backorder	Spring Holder	£8.90 £7.42
5	HP22511-VG8-850 Available to backorder	Guide	£36.96 £30.80
6	HP22422-VG8-851 Available to backorder	Pulley	£40.92 £34.10
7	HP22428-VA9-F60 Available to backorder	Spring Pin	£1.58 £1.32
8	HP23439-VE0-851 Available to backorder	Clutch Arm Return Spring	£4.56 £3.80
9	HP22811-VA9-F61 Available to backorder	Clutch Arm	£12.86 £10.72
10	HP23121-VA9-F60 In stock	Drive Sprocket	£43.00 £35.83
11	HP90308-SA0-981 Available to backorder	Lock Nut	£5.27 £4.39
12	HP94305-30182 In stock	Spring Pin 3 X 18	£1.58 £1.32
13	HP94305-50222 Available to backorder	Spring Pin 5 X 22	£2.52 £2.10

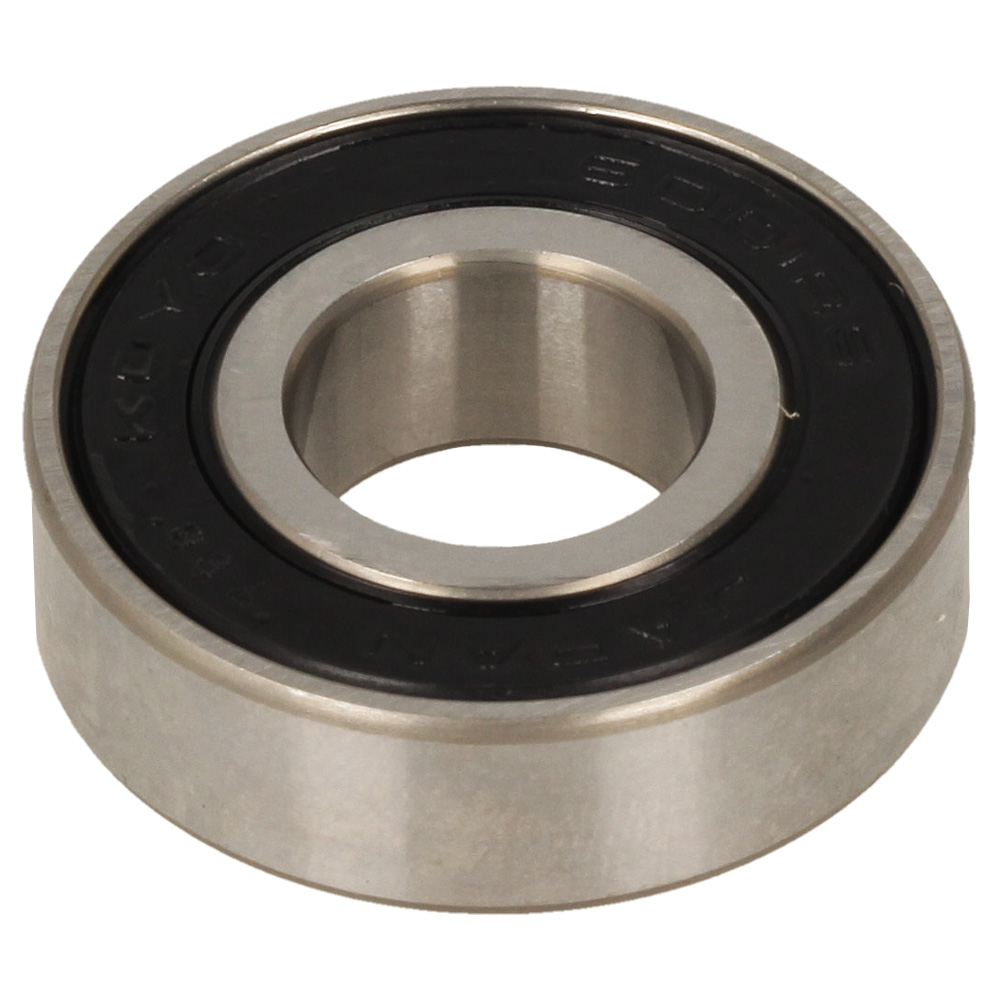

14	HP96150-6001010 Available to backorder	Bearing	£5.64 £4.70
15	HP96600-0604000 Available to backorder	Bolt	£0.48 £0.40
16	HP90301-VE0-L01 Available to backorder	Lock Nut 5Mm	£5.76 £4.80
17	HP95701-0601200 In stock	Bolt	£0.90 £0.75
