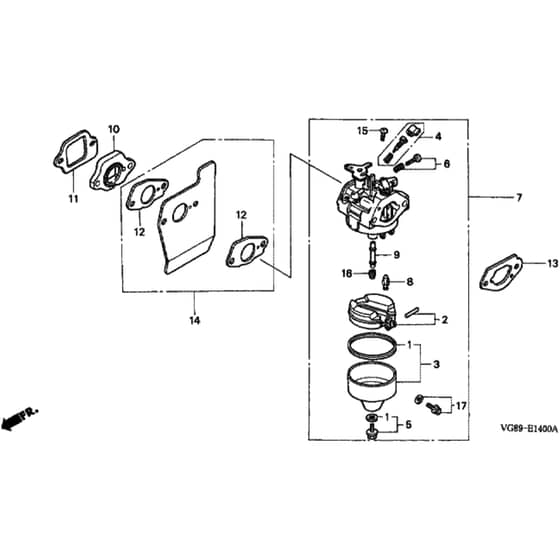

Honda HRB425C - SQEE - MZCF 8000001-8499999 Carburettor Diagram

Description

Honda HRB425C - SQEE Rotary Mower Parts Diagram

	Part No.	Details
1	HP16010-883-015 In stock	Gasket Set	£13.36 £11.13
2	HP16013-ZL1-003 Available to backorder	Float Set	£36.44 £30.37
3	HP16015-887-782 Available to backorder	Float Bowl Set	£45.56 £37.97
4	HP16016-ZG0-W00 Available to backorder	Screw Set	£13.69 £11.41
5	HP16028-ZK7-S91 In stock	Screw Set	£14.34 £11.95
6	HP16029-ZG0-901 Available to backorder	Throttle Stop Screw Set	£14.30 £11.92
7	HP16100-ZM1-825 In stock	Carburettor Assy	£106.76 £88.97
8	HP16155-ZM0-003 Available to backorder	Float Valve	£37.14 £30.95
9	HP16166-ZM1-003 Available to backorder	Main Nozzle	£38.39 £31.99
10	HP16211-ZL8-000 In stock	Carburettor Insulator	£5.21 £4.34
11	HP16212-ZL8-000 In stock	Insulator Gasket	£3.07 £2.56
12	HP16221-883-800 In stock	Carburettor Gasket	£2.46 £2.05
13	HP16228-ZL8-000 In stock	Carburettor Gasket	£3.14 £2.62
14	HP19650-ZM0-000 In stock	Air Guide Assy	£12.07 £10.06
15	HP93500-050-060H Available to backorder	Pan Screw	£2.32 £1.93
16	HP99101-1240550 Available to backorder	Jet	£12.34 £10.28
16	HP99101-124-0580 Available to backorder	Jet	£12.34 £10.28
16	HP99101-1240600 Available to backorder	Main Jet	£12.34 £10.28
17	HP16024-ZE1-811 Available to backorder	Drain Screw Set	£13.69 £11.41
