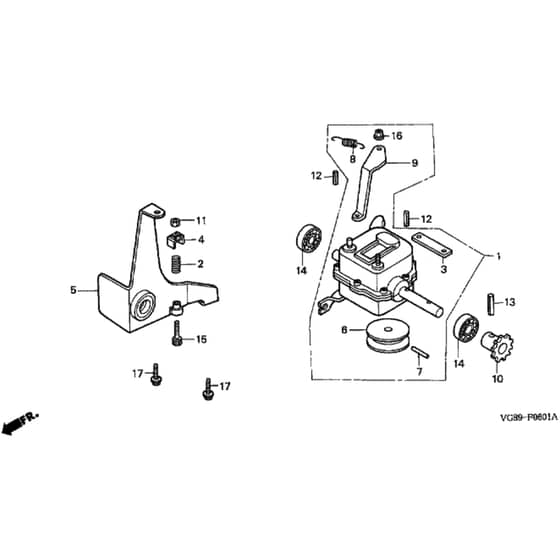

Honda HRB425C - SQE - MZCF 8000001-8499999 Transmission Case Diagram

Description

Honda HRB425C - SQE Rotary Mower Parts Diagram

	Part No.	Details
1	HP04201-VK7-A50 In stock	Transmission Kit	£264.40 £220.33
2	HP17858-VA4-000 In stock	Throttle Lever Spring	£4.16 £3.47
3	HP21284-VG8-851 Available to backorder	Transmission Stopper	£5.21 £4.34
4	HP21557-VA9-F60 Available to backorder	Spring Holder	£10.80 £9.00
5	HP22511-VG8-850 Available to backorder	Guide	£38.23 £31.86
6	HP22422-VG8-851 Available to backorder	Pulley	£40.92 £34.10
7	HP22428-VA9-F60 Available to backorder	Spring Pin	£1.37 £1.14
8	HP23439-VE0-851 In stock	Clutch Arm Return Spring	£4.98 £4.15
9	HP22811-VA9-F61 Available to backorder	Clutch Arm	£12.68 £10.57
10	HP23121-VA9-F60 In stock	Drive Sprocket	£46.08 £38.40
11	HP90308-SA0-981 Available to backorder	Lock Nut	£5.32 £4.43
12	HP94305-30182 In stock	Spring Pin 3 X 18	£1.75 £1.46
13	HP94305-50222 Available to backorder	Spring Pin 5 X 22	£2.48 £2.07
14	HP96150-6001010 Available to backorder	Bearing	£5.69 £4.74
15	HP96600-0604000 Available to backorder	Bolt	£0.48 £0.40
16	HP90301-VE0-L01 Available to backorder	Lock Nut 5Mm	£5.68 £4.73
17	HP95701-0601200 In stock	Bolt	£0.97 £0.81
