Honda HRB425C - SDE/A - MZCF 8500001-9999999 Transmission Case Diagram

Name: Honda HRB425C - SDE/A - MZCF 8500001-9999999 Transmission Case Diagram
SKU: hrb425c_sde_a_mzcf_8500001_9999999_transmission_case-group
Price: 1.14 GBP
Availability: InStock

Part No. hrb425c_sde_a_mzcf_8500001_9999999_transmission_case-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

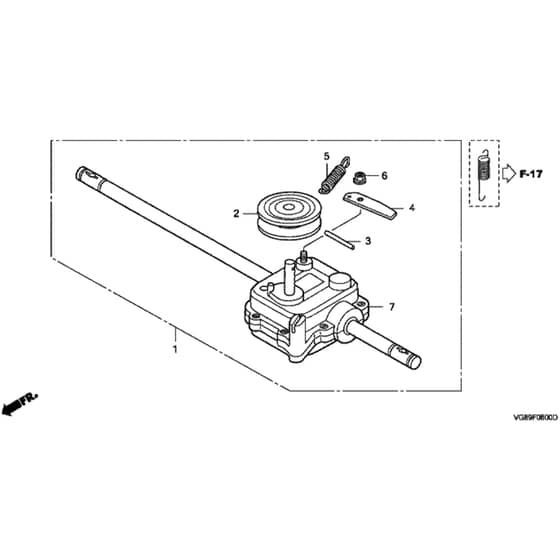

Honda HRB425C - SDE/A - MZCF 8500001-9999999 Transmission Case Diagram

Description

Honda HRB425C - SDE/A Rotary Mower Parts Diagram

	Part No.	Details
1	HP20001-VG8-802 Available to backorder	Transmission Assy	£204.96 £170.80
2	HP22422-VG8-801 Available to backorder	Pulley	£38.38 £31.98
3	HP22428-VA9-F60 Available to backorder	Spring Pin	£1.37 £1.14
4	HP23436-VE0-851 Available to backorder	Clutch Arm	£16.62 £13.85
5	HP23439-VE0-851 In stock	Clutch Arm Return Spring	£4.98 £4.15
6	HP90301-VE0-L01 Available to backorder	Lock Nut 5Mm	£5.68 £4.73
