Honda HRB425C - QXE - MZCF 8000001-8499999 Blade Diagram (up to ser no. 8079200)

Name: Honda HRB425C - QXE - MZCF 8000001-8499999 Blade Diagram (up to ser no. 8079200)
SKU: hrb425c_qxe_mzcf_8000001_8499999_blade-group
Price: 0.49 GBP
Availability: InStock

Part No. hrb425c_qxe_mzcf_8000001_8499999_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB425C - QXE - MZCF 8000001-8499999 Blade Diagram (up to ser no. 8079200)

Description

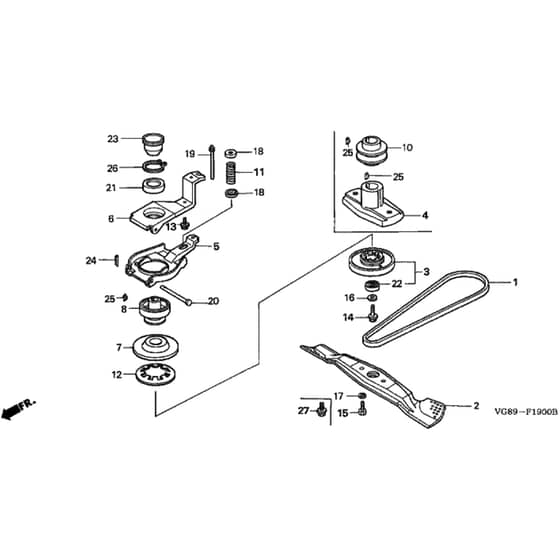

Honda HRB425C - QXE Rotary Mower Parts Diagram

	Part No.	Details
1	HP23161-VG8-850 In stock	Belt	£31.85 £26.54
2	HP72511-VG8-A50 Available to backorder	Blade	£41.17 £34.31
3	HP72600-VE0-000 Available to backorder	Blade Holder Assy	£85.68 £71.40
5	HP75130-VE0-020 In stock	Brake Arm Assy	£86.88 £72.40
6	HP75149-VE1-R41 Available to backorder	Clutch Return Spring Holder	£41.11 £34.26
7	HP75151-VE0-000 Available to backorder	Driven Disk	£161.04 £134.20
8	HP75160-VE1-R40 In stock	Pulley	£123.28 £102.73
11	HP75182-VE0-000 Available to backorder	Clutch Return Spring	£12.12 £10.10
12	HP75183-VE0-000 Available to backorder	Clutch Spring	£34.34 £28.62
13	HP90001-VE1-R40 Available to backorder	Flange Bolt 6Mm	£3.65 £3.04
14	HP90105-VA3-J01 In stock	Bolt Hex 10 X 25	£4.38 £3.65
15	HP90105-960-710 In stock	Blade Bolt	£2.99 £2.49
16	HP90409-952-000 In stock	Washer 10Mm	£1.21 £1.01
17	HP90481-430-000 In stock	Washer	£1.28 £1.07
18	HP90557-461-000 Available to backorder	Washer	£2.03 £1.69
19	HP90701-VE0-000 Available to backorder	Spring Guide Pin	£17.44 £14.53
20	HP90756-735-000 Available to backorder	Bonnet Hinge Pin	£8.12 £6.77
21	HP91010-P2A-003 Available to backorder	Bearing	£38.36 £31.97
22	HP91102-VA4-013 In stock	Bearing	£27.20 £22.67
23	HP91551-VE1-R41 Available to backorder	Thrust Collar	£52.31 £43.59
24	HP94201-20150 Available to backorder	Split Pin 2.0 X 15	£1.39 £1.16
25	HP94401-16150 In stock	Woodruff Key	£0.59 £0.49
26	HP94510-35000 Available to backorder	External Circlip 35Mm	£2.83 £2.36
