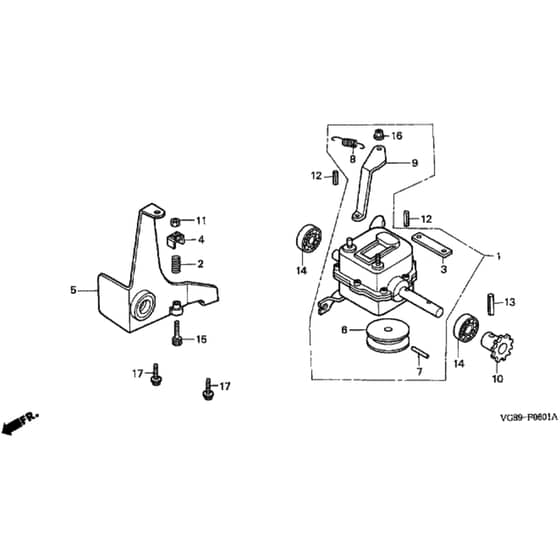

Honda HRB425C - QXE/A - MZCF 8500001-9999999 Transmission Case Diagram

Description

Honda HRB425C - QXE/A Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP04201-VK7-A50 In stock	Transmission Kit	£246.36 £205.30
2	HP17858-VA4-000 In stock	Throttle Lever Spring	£5.04 £4.20
3	HP21284-VG8-851 Out of stock	Transmission Stopper	£5.29 £4.41
4	HP21557-VA9-F60 Out of stock	Spring Holder	£8.90 £7.42
5	HP22511-VG8-850 Out of stock	Guide	£36.96 £30.80
6	HP22422-VG8-851 Out of stock	Pulley	£40.92 £34.10
7	HP22428-VA9-F60 Out of stock	Spring Pin	£1.58 £1.32
8	HP23439-VE0-851 Out of stock	Clutch Arm Return Spring	£4.75 £3.96
9	HP22811-VA9-F61 Out of stock	Clutch Arm	£12.86 £10.72
10	HP23121-VA9-F60 In stock	Drive Sprocket	£43.56 £36.30
11	HP90308-SA0-981 Out of stock	Lock Nut	£5.04 £4.20
12	HP94305-30182 In stock	Spring Pin 3 X 18	£1.98 £1.65
13	HP94305-50222 Out of stock	Spring Pin 5 X 22	£2.52 £2.10
14	HP96150-6001010 Out of stock	Bearing	£6.24 £5.20
15	HP96600-0604000 Out of stock	Bolt	£0.48 £0.40
16	HP90301-VE0-L01 Out of stock	Lock Nut 5Mm	£5.76 £4.80
17	HP95701-0601200 In stock	Bolt	£1.39 £1.16
