Honda HRB425C - QDE - MZCF 8000001-8499999 Front Wheel Diagram

Name: Honda HRB425C - QDE - MZCF 8000001-8499999 Front Wheel Diagram
SKU: hrb425c_qde_mzcf_8000001_8499999_front_wheel-group
Price: 0.39 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB425C - QDE - MZCF 8000001-8499999 Front Wheel Diagram

Description

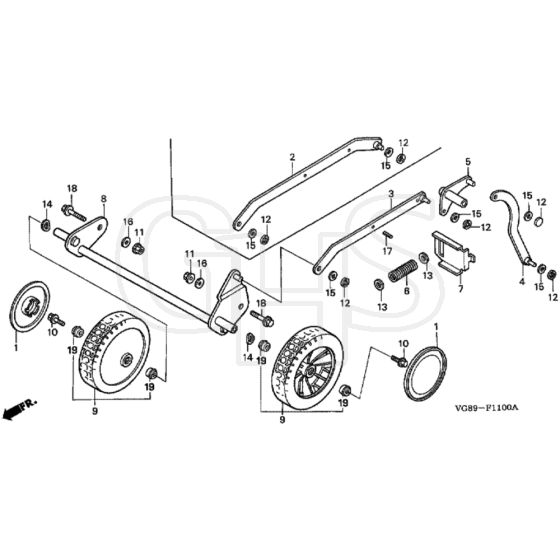

Honda HRB425C - QDE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP42719-VA9-B51ZA Available to backorder	Hub Cap	£3.82 £3.18
3	HP42963-VG8-870 Available to backorder	Adjuster Arm	£19.22 £16.02
4	HP42964-VG8-870 Available to backorder	Adjuster Arm	£17.05 £14.21
5	HP42991-VG8-870 Available to backorder	Height Adjuster Arm	£15.12 £12.60
6	HP42992-VE0-000 Available to backorder	Balancer Spring	£30.37 £25.31
7	HP42993-VG8-000 Available to backorder	Seat Spring	£9.62 £8.02
8	HP44310-VG8-000 Available to backorder	Front Shaft	£72.60 £60.50
9	HP44710-VA9-B60ZB In stock	Front Wheel	£47.00 £39.17
10	HP90110-VA4-000 In stock	Wheel Bolt	£5.76 £4.80
11	HP90115-659-003 In stock	Nut	£1.10 £0.92
12	HP90407-VA9-K40 In stock	Special Washer 8Mm	£1.68 £1.40
13	HP90501-VG8-000 Available to backorder	Spring Washer	£1.78 £1.48
14	HP90455-VA2-000 Available to backorder	Wheel Washer	£2.88 £2.40
15	HP94101-08000 Available to backorder	Plain Washer 8Mm	£0.96 £0.80
16	HP94103-08000 In stock	Plain Washer 8Mm	£0.47 £0.39
17	HP94305-40282 Available to backorder	Spring Pin 4 X 28	£2.38 £1.98
18	HP95801-0804500 Available to backorder	Flange Bolt 8 X 45	£2.47 £2.06
19	HP91051-VE0-750 In stock	Bearing	£11.16 £9.30
