Honda HRB425C - QDE - MZCF 8000001-8499999 Cutter House Diagram

Name: Honda HRB425C - QDE - MZCF 8000001-8499999 Cutter House Diagram
SKU: hrb425c_qde_mzcf_8000001_8499999_cutter_house-group
Price: 0.81 GBP
Availability: InStock

Part No. hrb425c_qde_mzcf_8000001_8499999_cutter_house-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB425C - QDE - MZCF 8000001-8499999 Cutter House Diagram

Description

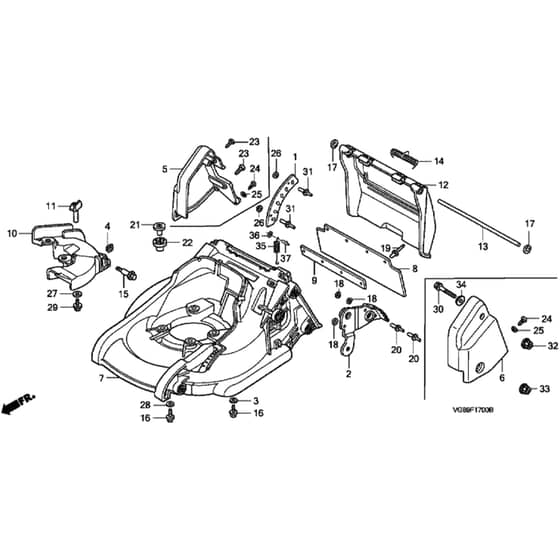

Honda HRB425C - QDE Rotary Mower Parts Diagram

	Part No.	Details
2	HP42996-VG8-870 Available to backorder	Height Adjuster Bracket	£31.03 £25.86
3	HP53101-GN5-900 Available to backorder	Washer	£6.20 £5.17
4	HP61304-958-003 In stock	Nut	£8.28 £6.90
5	HP63231-VG8-850ZA Available to backorder	Cover	£100.32 £83.60
7	HP76110-VG8-850 Available to backorder	Mower Housing	£168.72 £140.60
10	HP76142-VG8-000ZA Available to backorder	Guide Scroll	£73.56 £61.30
11	HP76158-VG8-000 Available to backorder	Bracket	£11.51 £9.59
12	HP76281-VG8-000ZA Available to backorder	Discharge Guard	£95.28 £79.40
13	HP76282-VG8-000 Available to backorder	Guard Shaft	£5.59 £4.66
14	HP76284-VG8-000 Available to backorder	Guard Return Spring	£8.11 £6.76
15	HP90101-VA9-K40 Available to backorder	Special Bolt 6Mm	£8.11 £6.76
16	HP90102-VE0-000 In stock	Engine Setting Bolt	£3.54 £2.95
17	HP90407-VA9-K40 In stock	Special Washer 8Mm	£1.85 £1.54
21	HP91651-VE0-010 Available to backorder	Engine Bed Collar	£4.79 £3.99
22	HP91652-VE0-000 In stock	Adiabatic Collar	£7.97 £6.64
23	HP93903-25210 In stock	Screw	£2.02 £1.68
24	HP93911-14110 Available to backorder	Tapping Screw	£1.86 £1.55
25	HP94101-04000 Available to backorder	Plain Washer 4Mm	£0.97 £0.81
27	HP94103-06800 Available to backorder	Plain Washer 6Mm	£0.97 £0.81
28	HP94103-08800 Available to backorder	Plain Washer 8Mm	£0.97 £0.81
29	HP95701-0601208 Available to backorder	Flange Bolt 6 X 12	£1.32 £1.10
32	HP94050-06000 In stock	Flange Nut 6Mm	£3.37 £2.81
33	HP94050-08000 In stock	Flange Nut 8Mm	£3.37 £2.81
