Honda HRB423K1 - SXE - MZBC 8100001- Rotary Blade Diagram

Description

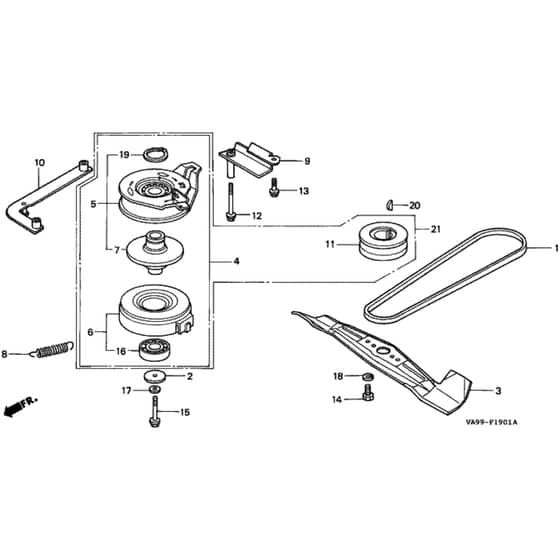

Honda HRB423K1 - SXE Rotary Mower Parts Diagram

	Part No.	Details
1	HP23161-VA9-E51 Available to backorder	Belt	£32.40 £27.00
2	HP40213-041-730 In stock	Washer 42 X 8.5	£20.86 £17.38
3	HP72511-VA9-H50 In stock	Blade	£41.17 £34.31
4	HP72605-VA9-H51 Available to backorder	Blade Clutch Assy	£161.88 £134.90
5	HP72607-VA9-H51 Available to backorder	Upper Clutch Assy	£118.44 £98.70
6	HP72608-VA9-H51 Available to backorder	Lower Clutch Assy	£118.32 £98.60
7	HP72616-VA9-H51 Available to backorder	Input Hub	£10.56 £8.80
8	HP75113-VA4-010 Available to backorder	Clutch Return Spring R H	£5.69 £4.74
9	HP75146-VA9-H50 Available to backorder	Cable Stopper	£12.62 £10.52
10	HP75149-VA9-H50 Available to backorder	Spring Stay	£10.34 £8.62
11	HP75162-VA9-P41 Available to backorder	Pulley (ser no. 8125566 +)	£47.21 £39.34
11	HP75162-VA9-P40 Available to backorder	Pulley (up to ser no. 8125565)	£47.28 £39.40
12	HP90011-MW3-601 Available to backorder	Flange Bolt	£4.84 £4.03
13	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.77 £3.14
14	HP90105-960-710 In stock	Blade Bolt	£2.99 £2.49
15	HP90108-VA9-000 Available to backorder	Bolt 8 X 50	£8.11 £6.76
16	HP90152-VA9-H50 Available to backorder	Bearing (up to ser no. 8125565)	£24.02 £20.02
17	HP90436-VA3-000 Available to backorder	Special Washer 22 X 8.5 X 2	£6.80 £5.67
18	HP90481-430-000 In stock	Washer	£1.28 £1.07
20	HP94401-16120 Available to backorder	Woodruff Key	£2.23 £1.86
21	HP06726-VA9-H50 Available to backorder	Blade Clutch Kit (up to ser no. 8125565)	£377.28 £314.40
