Honda HRB423K1 - SQE - MZBC 8100001- Transmission Diagram

Description

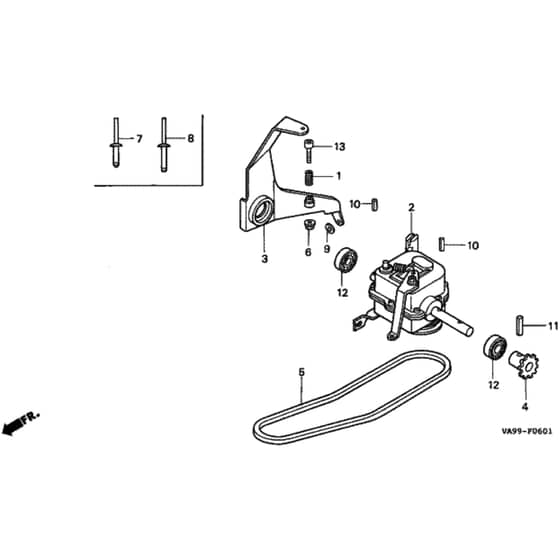

Honda HRB423K1 - SQE Rotary Mower Parts Diagram

	Part No.	Details
1	HP17858-VA4-000 In stock	Throttle Lever Spring	£4.16 £3.47
2	HP20001-VA9-F61 Available to backorder	Transmission Assy	£284.88 £237.40
3	HP22511-VA9-F60 Available to backorder	Transmission Guide	£28.46 £23.72
4	HP23121-VA9-F60 In stock	Drive Sprocket	£46.08 £38.40
6	HP90308-SA0-981 Available to backorder	Lock Nut	£5.32 £4.43
7	HP90851-VA9-K41 Available to backorder	Rivet 4.8 X 14	£4.94 £4.12
8	HP90852-VA9-K41 Available to backorder	Rivet 4.8 X 17.2	£1.61 £1.34
9	HP94101-05000 Available to backorder	Plain Washer 5Mm	£0.97 £0.81
10	HP94305-30182 In stock	Spring Pin 3 X 18	£1.75 £1.46
11	HP94305-50222 Available to backorder	Spring Pin 5 X 22	£2.48 £2.07
12	HP96150-6001010 Available to backorder	Bearing	£5.69 £4.74
13	HP96600-0604000 Available to backorder	Bolt	£0.48 £0.40
