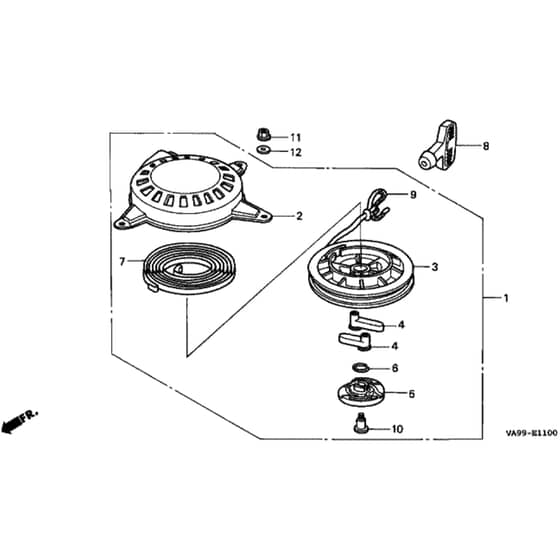

Honda HRB423K1 - SQE - MZBC 8100001- Recoil Starter Diagram

Name: Honda HRB423K1 - SQE - MZBC 8100001- Recoil Starter Diagram
SKU: hrb423k1_sqe_mzbc_8100001_recoil_starter-group
Price: 0.91 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB423K1 - SQE - MZBC 8100001- Recoil Starter Diagram

Description

Honda HRB423K1 - SQE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP28400-ZL1-003 Out of stock	Starter Recoil Assy	£82.08 £68.40
2	HP28410-ZL1-003 Out of stock	Recoil Starter Case	£63.36 £52.80
3	HP28421-ZL1-003 Out of stock	Recoil Pulley	£38.06 £31.72
4	HP28422-ZL1-003 Out of stock	Starter Pawl	£7.32 £6.10
5	HP28433-ZL1-003 Out of stock	Ratchet	£9.46 £7.88
6	HP28441-ZH8-003 Out of stock	Friction Spring	£6.89 £5.74
7	HP28442-ZH8-003 In stock	Recoil Spring	Was £32.24 £26.87 Special Price £21.37 £17.81
8	HP28461-ZE7-T01 Out of stock	Recoil Starter Handle	£7.02 £5.85
9	HP28462-ZL1-003 Out of stock	Recoil Starter Rope	£15.50 £12.92
10	HP90003-ZH8-003 Out of stock	Setting Screw	£9.06 £7.55
11	HP94050-05000 Out of stock	Flange Nut 5Mm	£3.61 £3.01
12	HP94103-05000 Out of stock	Plain Washer 5Mm	£1.09 £0.91
