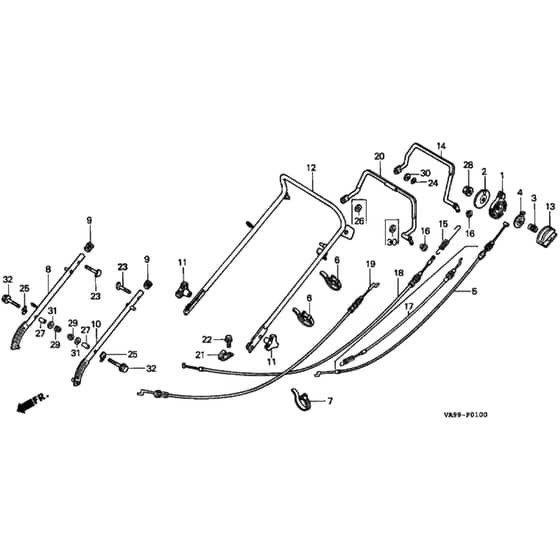

Honda HRB423K1 - PDE - MZBC 8100001- Handle Pipe Diagram

Description

Honda HRB423K1 - PDE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HP17857-VA4-000 Available to backorder	Throttle Lever Plate	£8.12 £6.77
3	HP17858-VA4-000 In stock	Throttle Lever Spring	£3.80 £3.17
4	HP17859-VA4-000 Available to backorder	Seat Spring	£6.40 £5.33
5	HP17910-VA9-P01 Available to backorder	Throttle Cable	£26.05 £21.71
6	HP32901-VE0-850 Available to backorder	Cable Tie	£6.30 £5.25
7	HP32901-952-770 Available to backorder	Cable Tie	£2.36 £1.97
8	HP53110-VA9-B50ZC Available to backorder	Lower Handle	£24.12 £20.10
9	HP53115-VA9-K40 Available to backorder	Lower Handle Cap	£0.60 £0.50
10	HP53120-VA9-B50ZC Available to backorder	Lower Handle	£21.14 £17.62
11	HP53125-VA3-680 In stock	Handle Grip	£12.72 £10.60
12	HP53150-VA9-D50ZZ Available to backorder	Handle Bar	£66.00 £55.00
13	HP54231-VA9-K40 Available to backorder	Control Cover	£5.05 £4.21
20	HP75171-VA9-F50ZA Available to backorder	Brake Lever	£42.37 £35.31
23	HP90109-VF0-000 In stock	Handle Bolt	£10.04 £8.37
24	HP90407-VA9-K40 In stock	Special Washer 8Mm	£1.68 £1.40
25	HP90501-898-000 Available to backorder	Frame Joint Washer	£4.20 £3.50
1	HP17851-VA3-D01 In stock	Throttle Lever	£16.16 £13.47
27	HP91554-VA9-B50 Available to backorder	Collar	£5.26 £4.38
28	HP90201-415-000 Available to backorder	Cap Nut 6Mm	£5.52 £4.60
29	HP94050-08000 In stock	Flange Nut 8Mm	£3.08 £2.57
30	HP94101-08000 Available to backorder	Plain Washer 8Mm	£0.96 £0.80
31	HP94103-08000 In stock	Plain Washer 8Mm	£0.47 £0.39
32	HP95801-080-7000 Available to backorder	Flange Bolt	£2.76 £2.30
