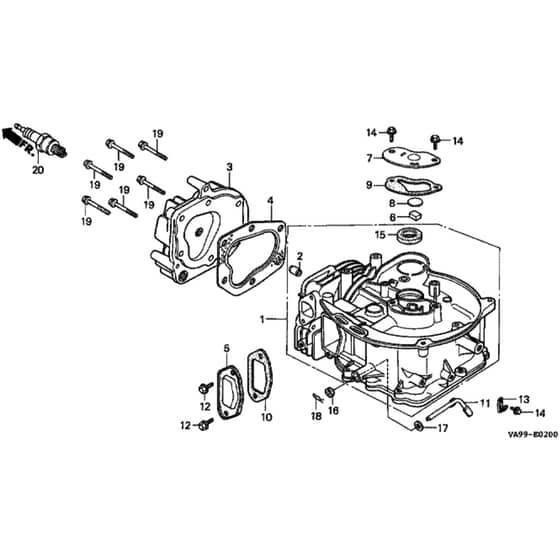

Honda HRB423K1 - PDE - MZBC 8100001- Cylinder Barrel Diagram

Name: Honda HRB423K1 - PDE - MZBC 8100001- Cylinder Barrel Diagram
SKU: hrb423k1_pde_mzbc_8100001_cylinder_barrel-group
Price: 0.5 GBP
Availability: InStock

Part No. hrb423k1_pde_mzbc_8100001_cylinder_barrel-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB423K1 - PDE - MZBC 8100001- Cylinder Barrel Diagram

Description

Honda HRB423K1 - PDE Rotary Mower Parts Diagram

	Part No.	Details
1	HP12000-ZL1-000 Available to backorder	Cylinder Assy	£396.60 £330.50
2	HP12133-896-306 Available to backorder	Valve Guide	£11.28 £9.40
3	HP12211-ZG1-U10 Available to backorder	Cylinder Head	£61.92 £51.60
4	HP12281-ZC0-003 Available to backorder	Cylinder Head Gasket	£14.28 £11.90
5	HP12363-ZG1-000 Available to backorder	Tappet Cover	£10.03 £8.36
6	HP12367-ZG1-013 Available to backorder	Breather Filter	£5.06 £4.22
7	HP12370-ZG1-020 Available to backorder	Breather Cap	£10.50 £8.75
8	HP12372-879-000 Available to backorder	Breather Valve	£1.51 £1.26
9	HP12373-ZG1-000 In stock	Breather Gasket	Was £2.11 £1.76 Special Price £0.60 £0.50
10	HP12375-ZG1-000 Available to backorder	Tappet Cover Gasket	£1.78 £1.48
11	HP16541-896-000 Available to backorder	Governor Arm Shaft	£9.29 £7.74
12	HP90002-892-000 Available to backorder	Nut	£2.46 £2.05
14	HP90013-883-000 Available to backorder	Flange Bolt 6 X 12	£4.34 £3.62
15	HP91202-892-004 Available to backorder	Oil Seal 17 X 30 X 6	£12.85 £10.71
16	HP91231-816-000 Available to backorder	Oil Seal	£8.74 £7.28
17	HP94101-05000 Available to backorder	Plain Washer 5Mm	£0.97 £0.81
18	HP94251-08000 In stock	Lock Pin 8Mm	£1.84 £1.53
19	HP95801-060-3500 Available to backorder	Flange Bolt	£1.55 £1.29
20	2132 In stock	Spark Plug	£3.68 £3.07
