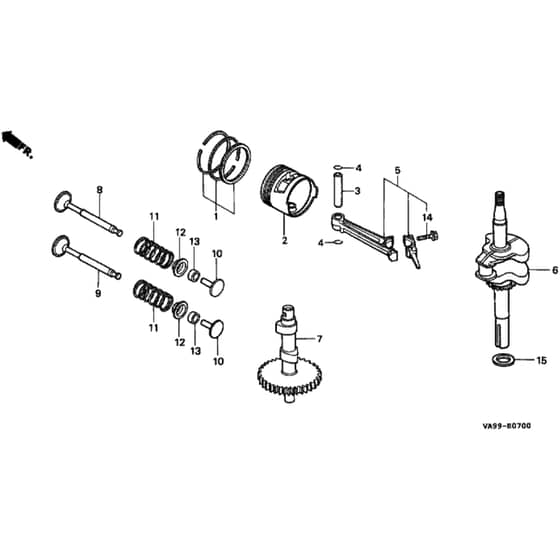

Honda HRB423K1 - PDE - MZBC 8100001- Crankshaft Diagram

Description

Honda HRB423K1 - PDE Rotary Mower Parts Diagram

	Part No.	Details
1	HP13010-ZG1-U11 Available to backorder	Piston Ring Set	£18.41 £15.34
1	HP13011-ZC0-003 Available to backorder	Piston Ring Set	£31.37 £26.14
1	HP13012-ZC0-003 Available to backorder	Piston Ring Set	£32.14 £26.78
2	HP13102-ZC0-003 Available to backorder	Piston 0.25	£40.32 £33.60
2	HP13103-ZC0-003 Available to backorder	Piston	£35.66 £29.72
2	HP13104-ZC0-003 Available to backorder	Piston	£30.02 £25.02
3	HP13111-892-000 Available to backorder	Gudgeon Pin	£8.54 £7.12
4	HP13115-147-000 Available to backorder	Gudgeon Pin Clip	£5.74 £4.78
5	HP13200-ZG0-305 Available to backorder	Connecting Rod Assy	£69.00 £57.50
5	HP13200-ZG0-000 Available to backorder	Connecting Rod Assy	£80.40 £67.00
6	HP13310-ZL1-J00 Available to backorder	Crankshaft Assy	£212.64 £177.20
7	HP14100-ZG1-U10 Available to backorder	Camshaft Assy	£139.08 £115.90
8	HP14711-ZG1-U10 Available to backorder	Inlet Valve	£23.44 £19.53
9	HP14721-ZG1-U10 Available to backorder	Exhaust Valve	£45.04 £37.53
10	HP14732-ZA8-000 Available to backorder	Valve Lifter	£15.24 £12.70
11	HP14751-896-000 Available to backorder	Valve Spring	£4.51 £3.76
12	HP14771-ZG0-000 Available to backorder	Valve Spring Retainer	£4.62 £3.85
13	HP14820-892-000 Available to backorder	Tappet Clearance Adjuster	£6.52 £5.43
13	HP14803-892-000 Available to backorder	Tappet	£6.52 £5.43
13	HP14809-892-000 Available to backorder	Adjuster Tappet	£6.52 £5.43
13	HP14801-892-000 Available to backorder	Tappet Clearance Adjuster	£6.52 £5.43
13	HP14815-892-000 Available to backorder	Tappet	£6.52 £5.43
13	HP14812-892-000 Available to backorder	Adjuster Tappet	£6.52 £5.43
13	HP14806-892-000 Available to backorder	Tappet Clearance Adjuster	£6.52 £5.43
13	HP14818-892-000 Available to backorder	Tappet	£6.52 £5.43
14	HP90001-ZG0-000 Available to backorder	Connecting Rod Bolt	£3.71 £3.09
15	HP90452-ZL1-000 Available to backorder	Thrust Washer	£5.54 £4.62
