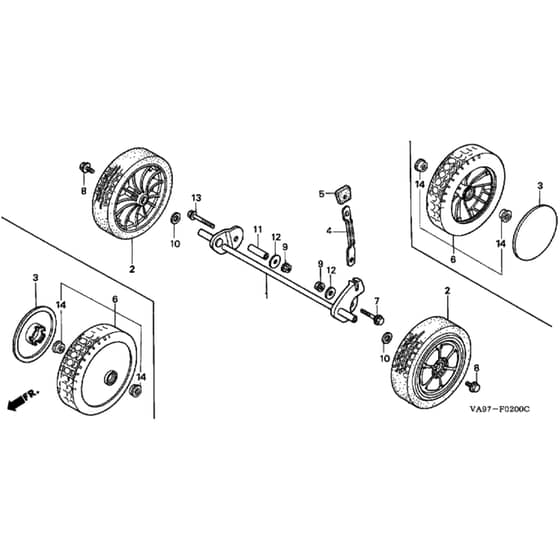

Honda HRB423 - SXE - MZBC 8000001-8099999 Front Wheel Diagram

Name: Honda HRB423 - SXE - MZBC 8000001-8099999 Front Wheel Diagram
SKU: hrb423_sxe_mzbc_8000001_8099999_front_wheel-group
Price: 0.39 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB423 - SXE - MZBC 8000001-8099999 Front Wheel Diagram

Description

Honda HRB423 - SXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP44310-VA9-B51 Available to backorder	Axle Shaft	£187.42 £156.18
3	HP42719-VA9-B51ZA Available to backorder	Hub Cap	£3.82 £3.18
4	HP42951-VA9-K40 Available to backorder	Front Adjuster Plate	£20.11 £16.76
5	HP42952-VA4-000 In stock	Adjuster Grip	£1.62 £1.35
6	HP44710-VA9-B60ZA Available to backorder	Wheel	£37.80 £31.50
7	HP90105-VA9-000 Available to backorder	Adjuster Bolt	£5.83 £4.86
8	HP90110-VA4-000 In stock	Wheel Bolt	£5.76 £4.80
9	HP90115-659-003 In stock	Nut	£1.10 £0.92
10	HP90455-VA2-000 Available to backorder	Wheel Washer	£2.88 £2.40
11	HP91905-VA9-000 Available to backorder	Adjusting Collar	£4.13 £3.44
12	HP94103-08000 In stock	Plain Washer 8Mm	£0.47 £0.39
13	HP95801-0805000 Available to backorder	Flange Bolt 8 X 50	£2.60 £2.17
14	HP91051-VE0-750 In stock	Bearing	£11.16 £9.30
