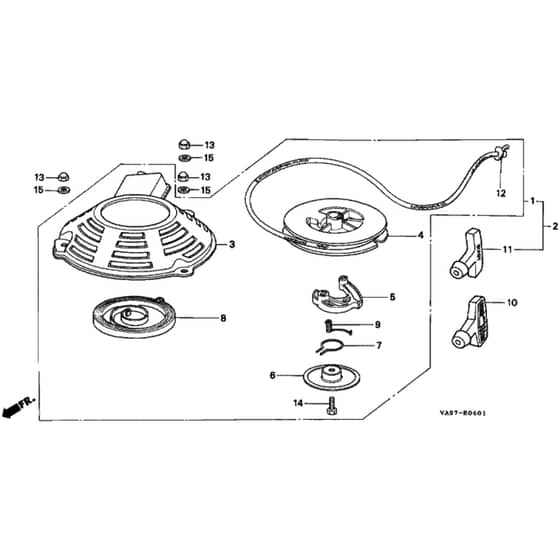

Honda HRB423 - SQE - MZBC 8000001-8099999 Recoil Starter Diagram

Honda HRB423 - SQE - MZBC 8000001-8099999 Recoil Starter Diagram
Honda HRB423 - SQE - MZBC 8000001-8099999 Recoil Starter Diagram

Description

Honda HRB423 - SQE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Starter Recoil Assy HP28400-ZG1-T12ZC
Starter Recoil Assy
Out of stock
£138.84 £115.70

  3 Housing HP28410-ZG1-702ZC
Housing
Out of stock
£99.84 £83.20

  3 Recoil Starter Case HP28410-ZG1-702ZD
Recoil Starter Case
Out of stock
£88.32 £73.60

  4 Recoil Pulley HP28420-ZG1-702
Recoil Pulley
In stock
£32.04 £26.70

  5 Starter Pawl HP28422-896-010
Starter Pawl
In stock
£14.32 £11.93

  6 Friction Plate HP28431-896-000
Friction Plate
Out of stock
£9.17 £7.64

  7 Friction Spring HP28441-896-000
Friction Spring
Out of stock
£5.94 £4.95

  8 Recoil Spring HP28442-ZE6-003
Recoil Spring
Out of stock
£30.61 £25.51

  9 Return Spring HP28443-896-000
Return Spring
Out of stock
£5.94 £4.95

  10 Recoil Starter Handle HP28461-ZE7-T01
Recoil Starter Handle
Out of stock
£7.02 £5.85

  12 Recoil Starter Rope HP28462-ZG1-T12
Recoil Starter Rope
Out of stock
£14.52 £12.10

  13 Flange Nut 5Mm HP94050-05000
Flange Nut 5Mm
Out of stock
£3.61 £3.01

  14 Bolt HP92101-060120H
Bolt
Out of stock
£1.34 £1.12

  15 Plain Washer 5Mm HP94103-05000
Plain Washer 5Mm
Out of stock
£1.09 £0.91


Description

Honda HRB423 - SQE Rotary Mower Parts Diagram
