Honda HRB423 - SG - MZBC 8000001-8099999 Gear Case Diagram

Description

Honda HRB423 - SG Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP21511-VA9-H40 In stock	Upper Gear Case	Was £82.56 £68.80 Special Price £54.10 £45.08
2	HP21581-952-770 Available to backorder	O Ring	£4.58 £3.82
3	HP21611-952-770 Available to backorder	Cover	£10.46 £8.72
4	HP22534-VA9-D50 Available to backorder	Tension Spring	£8.88 £7.40
6	HP22535-VA9-K40 Available to backorder	Holder	£10.04 £8.37
9	HP95701-0601200 In stock	Bolt	£0.90 £0.75
12	HP90459-107-000 In stock	Washer	£4.78 £3.98
13	HP91201-GS3-000 Available to backorder	Oil Seal	£10.14 £8.45
14	HP91201-965-000 Available to backorder	Oil Seal	£6.30 £5.25
15	HP91201-ZE9-003 Available to backorder	Oil Seal 8 X 14 X 5	£4.30 £3.58

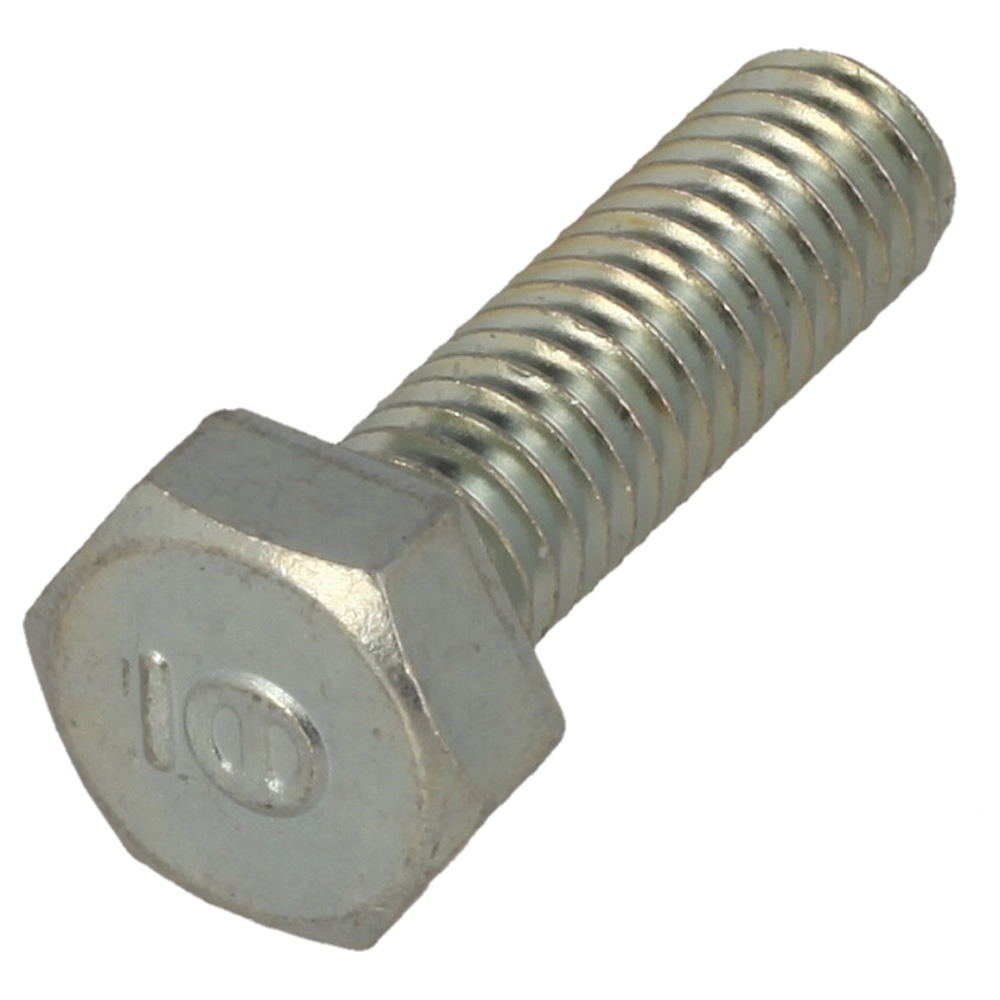

16	HP92101-060200A Available to backorder	Bolt	£1.09 £0.91
17	HP94001-062000S Available to backorder	Hex Nut 6Mm	£3.22 £2.68
18	HP94520-28000 Available to backorder	Internal Circlip 28Mm	£2.47 £2.06
20	HP96100-6001000 Available to backorder	Bearing	£15.50 £12.92
