Honda HRB423 - SDH - MZBC 8000001-8099999 Handle Pipe Diagram

Description

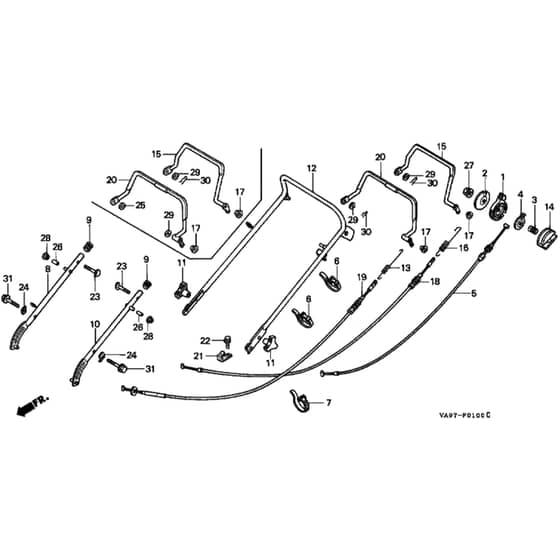

Honda HRB423 - SDH Rotary Mower Parts Diagram

	Part No.	Details
2	HP17857-VA4-000 Available to backorder	Throttle Lever Plate	£8.20 £6.83
3	HP17858-VA4-000 In stock	Throttle Lever Spring	£4.16 £3.47
4	HP17859-VA4-000 Available to backorder	Seat Spring	£6.46 £5.38
5	HP17910-VA9-000 In stock	Throttle Cable	£41.28 £34.40
6	HP32901-VE0-850 Available to backorder	Cable Tie	£6.20 £5.17
7	HP32901-952-770 Available to backorder	Cable Tie	£2.33 £1.94
8	HP53110-VA9-B50ZA Available to backorder	Lower Handle	£31.78 £26.48
9	HP53115-VA9-K40 Available to backorder	Lower Handle Cap	£0.59 £0.49
10	HP53120-VA9-B50ZA Available to backorder	Lower Handle	£25.49 £21.24
11	HP53125-VA3-680 In stock	Handle Grip	£13.85 £11.54
12	HP53150-VA9-D50ZZ Available to backorder	Handle Bar	£65.40 £54.50
14	HP54231-VA9-K40 Available to backorder	Control Cover	£6.19 £5.16
15	HP54410-VA9-K40 Available to backorder	Clutch Lever Assy	£53.48 £44.57
17	HP54412-952-770 Available to backorder	Clutch Lever Bush	£4.55 £3.79
18	HP54510-VA9-E51 Available to backorder	Clutch Cable	£25.16 £20.97
19	HP54530-VA9-000 Available to backorder	Brake Cable Assy	£33.68 £28.07
20	HP75171-VA9-F50ZA Available to backorder	Brake Lever	£42.37 £35.31
23	HP90109-VF0-000 In stock	Handle Bolt	£10.76 £8.97
24	HP90501-898-000 In stock	Frame Joint Washer	£3.47 £2.89
25	HP90507-921-000 Available to backorder	Washer	£2.14 £1.78
26	HP91554-VA9-B50 Available to backorder	Collar	£5.26 £4.38
27	HP94050-06000 In stock	Flange Nut 6Mm	£3.37 £2.81
28	HP94050-08000 In stock	Flange Nut 8Mm	£3.37 £2.81
29	HP90407-VA9-K40 In stock	Special Washer 8Mm	£1.85 £1.54
31	HP95801-080-7000 Available to backorder	Flange Bolt	£2.75 £2.29
