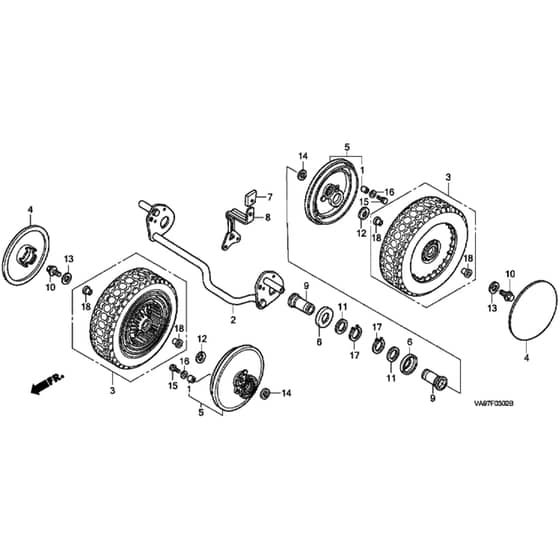

Honda HRB423 - SDE - MZBC 8000001-8099999 Rear Wheel Diagram

Description

Honda HRB423 - SDE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16598-ZG1-750 Available to backorder	Control Collar	£3.91 £3.26
2	HP42310-VA9-D50 Available to backorder	Axle Shaft	£85.42 £71.18
3	HP42710-VE0-800ZA Available to backorder	Rear Wheel	£46.08 £38.40
4	HP42719-VE0-851ZA Available to backorder	Hub Cap	£3.43 £2.86
5	HP42865-VE0-800ZA Available to backorder	Wheel Cover	£19.31 £16.09
6	HP42868-VA9-K40 Available to backorder	Wheel Cap	£1.48 £1.23
7	HP42952-VA4-000 In stock	Adjuster Grip	£1.62 £1.35
8	HP42961-VA9-B50 Available to backorder	Rear Adjuster Plate	£18.91 £15.76
9	HP44312-VA9-K40 Available to backorder	Collar	£18.38 £15.32
10	HP90110-VA4-000 In stock	Wheel Bolt	£5.76 £4.80
11	HP90453-KA3-710 Available to backorder	Thrust Washer	£2.70 £2.25
12	HP90505-VA9-K40 In stock	Washer 13Mm	£2.04 £1.70
13	HP90506-VA9-K41 Available to backorder	Wheel Washer	£4.14 £3.45
14	HP91556-VE0-751 Available to backorder	Wheel Collar	£6.55 £5.46
15	HP92101-050120A Available to backorder	Bolt	£1.03 £0.86
16	HP94101-05800 Available to backorder	Plain Washer 5Mm	£0.96 £0.80
17	HP94510-20000 Available to backorder	External Circlip 20Mm	£1.68 £1.40
18	HP42716-VE0-800 In stock	Wheel Bush	£3.72 £3.10
