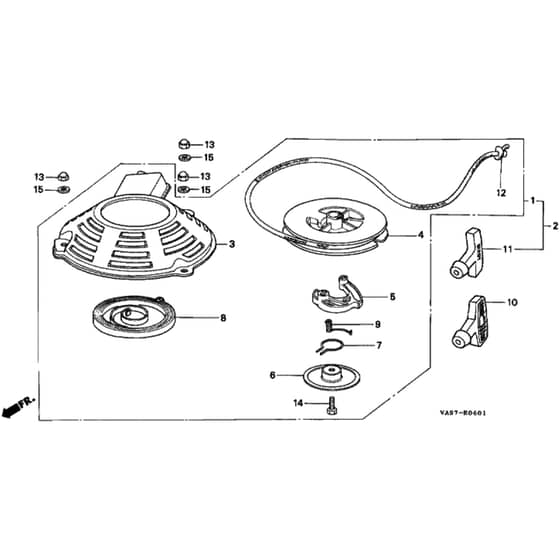

Honda HRB423 - QDE - MZBC 8000001-8099999 Recoil Starter Diagram (eng no. 2565817 +)

Name: Honda HRB423 - QDE - MZBC 8000001-8099999 Recoil Starter Diagram (eng no. 2565817 +)
SKU: hrb423_qde_mzbc_8000001_8099999_recoil_starter_2_-group
Price: 0.81 GBP
Availability: InStock

Part No. hrb423_qde_mzbc_8000001_8099999_recoil_starter_2_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB423 - QDE - MZBC 8000001-8099999 Recoil Starter Diagram (eng no. 2565817 +)

Description

Honda HRB423 - QDE Rotary Mower Parts Diagram (Plastic Pawl)

	Part No.	Details
3	HP28410-ZG1-702ZD Available to backorder	Recoil Starter Case	£87.60 £73.00
4	HP28420-ZG1-702 In stock	Recoil Pulley	£26.27 £21.89
5	HP28422-896-010 In stock	Starter Pawl	£12.49 £10.41
7	HP28441-896-000 Available to backorder	Friction Spring	£5.17 £4.31
8	HP28442-ZE6-003 Available to backorder	Recoil Spring	£29.24 £24.37
9	HP28443-896-000 Available to backorder	Return Spring	£5.17 £4.31
10	HP28461-ZE7-T01 In stock	Recoil Starter Handle	£6.95 £5.79
12	HP28462-ZG1-T12 Available to backorder	Recoil Starter Rope	£13.09 £10.91
13	HP90106-MB9-871 Available to backorder	Flange Nut	£7.56 £6.30
14	HP92101-060120H Available to backorder	Bolt	£1.09 £0.91
15	HP94103-05000 Available to backorder	Plain Washer 5Mm	£0.97 £0.81
