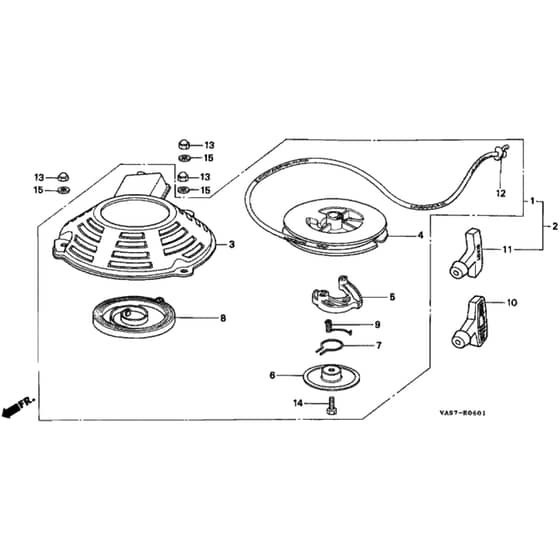

Honda HRB423 - PDH - MZBC 8000001-8099999 Recoil Starter Diagram

Name: Honda HRB423 - PDH - MZBC 8000001-8099999 Recoil Starter Diagram
SKU: hrb423_pdh_mzbc_8000001_8099999_recoil_starter-group
Price: 0.8 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB423 - PDH - MZBC 8000001-8099999 Recoil Starter Diagram

Description

Honda HRB423 - PDH Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	HP28410-ZG1-702ZC Available to backorder	Housing	£103.96 £86.63
3	HP28410-ZG1-702ZD Available to backorder	Recoil Starter Case	£88.32 £73.60
4	HP28420-ZG1-702 In stock	Recoil Pulley	£24.04 £20.03
5	HP28422-896-010 In stock	Starter Pawl	£11.44 £9.53
7	HP28441-896-000 Available to backorder	Friction Spring	£5.00 £4.17
8	HP28442-ZE6-003 Available to backorder	Recoil Spring	£28.98 £24.15
9	HP28443-896-000 Available to backorder	Return Spring	£6.44 £5.37
10	HP28461-ZE7-T01 In stock	Recoil Starter Handle	£6.34 £5.28
12	HP28462-ZG1-T12 Available to backorder	Recoil Starter Rope	£12.97 £10.81
13	HP94050-05000 Available to backorder	Flange Nut 5Mm	£3.22 £2.68
14	HP92101-060120H Available to backorder	Bolt	£1.09 £0.91
15	HP94103-05000 Available to backorder	Plain Washer 5Mm	£0.96 £0.80
