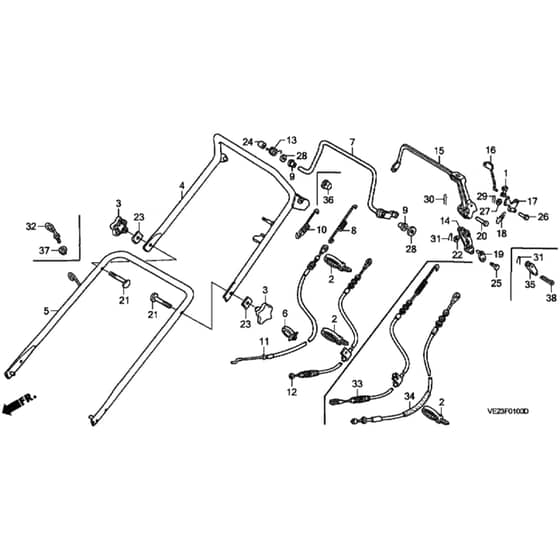

Honda HRB215K4 - SXC/A - MZBA 6424487-9999999 Handle Pipe Diagram

Name: Honda HRB215K4 - SXC/A - MZBA 6424487-9999999 Handle Pipe Diagram
SKU: hrb215k4_sxc_a_mzba_6424487_9999999_handle_pipe-group
Price: 0.8 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB215K4 - SXC/A - MZBA 6424487-9999999 Handle Pipe Diagram

Description

Honda HRB215K4 - SXC/A Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16956-892-000 Available to backorder	Rod Joint	£8.52 £7.10
2	HP32901-VB5-A00 In stock	Cable Tie	Was £6.47 £5.39 Special Price £4.30 £3.58
3	HP53125-VA4-K10 Available to backorder	Handle Grip	£14.29 £11.91
6	HP53735-SE0-961 Available to backorder	Clip	£7.88 £6.57
7	HP54410-VA3-J00 Available to backorder	Clutch Lever Assy	£73.32 £61.10
9	HP54412-952-770 Available to backorder	Clutch Lever Bush	£4.62 £3.85
13	HP75118-VA3-J00 In stock	Stop Return Spring R H	£7.82 £6.52
15	HP75161-VA3-J01 Available to backorder	Roto-Stop Lever Assy	£115.44 £96.20
16	HP75165-VA3-J00 Available to backorder	Ratchet Push Rod	£19.75 £16.46
17	HP75166-VA3-J01 Available to backorder	Lock Lever	£23.56 £19.63
18	HP75168-VA4-000 In stock	Pawl Spring	£6.48 £5.40
20	HP90106-VA4-800 Available to backorder	Clutch Lever Pin	£11.96 £9.97
21	HP90109-VA4-000 Available to backorder	Handle Bolt	£10.62 £8.85
23	HP90501-898-000 Available to backorder	Frame Joint Washer	£4.20 £3.50
24	HP90552-VA3-J00 Available to backorder	Collar 8 X 11 X 13.5	£6.76 £5.63
26	HP90753-VA3-J00 Available to backorder	Lever Hinge Lock Pin	£4.80 £4.00
27	HP94101-06000 Available to backorder	Plain Washer 6Mm	£1.19 £0.99
28	HP94101-08000 Available to backorder	Plain Washer 8Mm	£0.96 £0.80
29	HP94251-06000 In stock	Lock Pin 6Mm	£1.14 £0.95
30	HP94251-08000 In stock	Lock Pin 8Mm	£1.86 £1.55
33	HP54510-VE1-T01 Available to backorder	Clutch Cable	£29.86 £24.88
34	HP54530-VE1-T01 Available to backorder	Roto-Stop Cable	£49.74 £41.45
35	HP75130-VE1-L10 Available to backorder	Roto-Stop Arm	£28.20 £23.50
38	HP94201-20100 Available to backorder	Split Pin	£1.38 £1.15
