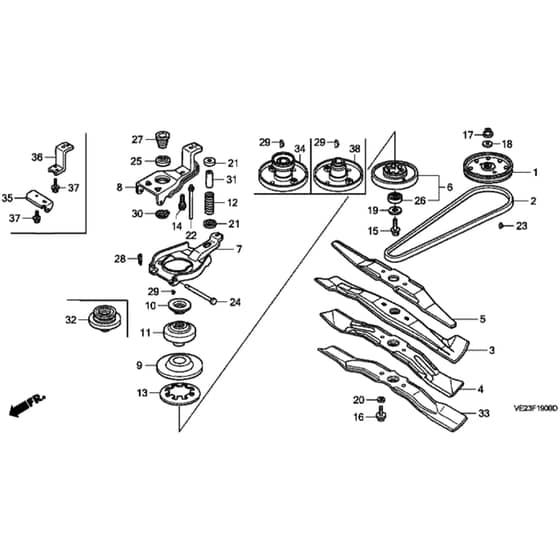

Honda HRB215K4 - SDC - MZBA 6400001-9999999 Rotary Blade Diagram

Name: Honda HRB215K4 - SDC - MZBA 6400001-9999999 Rotary Blade Diagram
SKU: hrb215k4_sdc_mzba_6400001_9999999_rotary_blade-group
Price: 0.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB215K4 - SDC - MZBA 6400001-9999999 Rotary Blade Diagram

Description

Honda HRB215K4 - SDC Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HP22431-VE1-T00 Available to backorder	Belt	£28.97 £24.14
4	HP72511-VG4-K00 Available to backorder	Blade	£49.32 £41.10
5	HP72531-VE2-020 Available to backorder	Upper Blade	£45.13 £37.61
15	HP90105-VA3-J01 In stock	Bolt Hex 10 X 25	£4.08 £3.40
16	HP90105-960-710 In stock	Blade Bolt	£2.76 £2.30
17	HP90304-GA6-003 Available to backorder	Nut	£4.92 £4.10
18	HP90405-KV3-000 Available to backorder	Thrust Washer	£3.71 £3.09
20	HP90502-VG3-000 Available to backorder	Spring Washer 10Mm	£1.64 £1.37
23	HP90751-VE2-M00 Available to backorder	Woodruff Key	£0.35 £0.29
29	HP94401-16150 In stock	Woodruff Key	£0.54 £0.45
33	HP72511-VE1-020 Available to backorder	Blade	£55.69 £46.41
34	HP72610-VE2-D00 Available to backorder	Blade Holder	£44.84 £37.37
