Honda HRB215K4 - PXC - MZBA 6400001-6400004 Rear Wheel Diagram

Name: Honda HRB215K4 - PXC - MZBA 6400001-6400004 Rear Wheel Diagram
SKU: hrb215k4_pxc_mzba_6400001_6400004_rear_wheel-group
Price: 1.41 GBP
Availability: InStock

Part No. hrb215k4_pxc_mzba_6400001_6400004_rear_wheel-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB215K4 - PXC - MZBA 6400001-6400004 Rear Wheel Diagram

Description

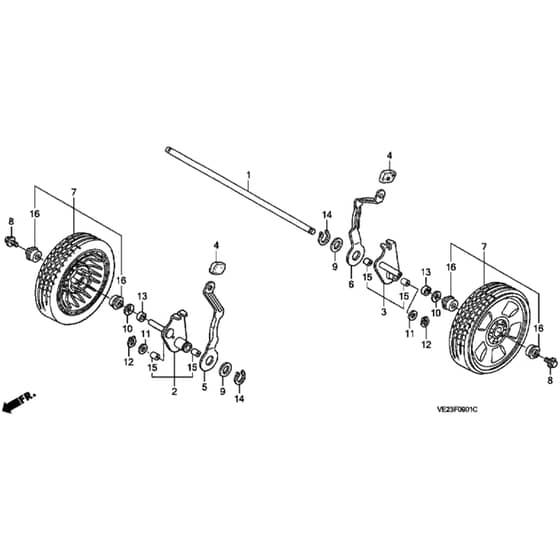

Honda HRB215K4 - PXC Rotary Mower Parts Diagram

	Part No.	Details
1	HP23371-VE2-000 Available to backorder	Wheel Shaft	£25.09 £20.91
2	HP42930-VE2-030 Available to backorder	Adjuster Arm Assy Rear R H	£27.01 £22.51
3	HP42940-VE2-030 Available to backorder	Adjuster Arm Front L H	£60.18 £50.15
4	HP42952-VG3-000ZA Available to backorder	Adjuster Grip	£1.69 £1.41
5	HP42961-VE2-000 Available to backorder	Rear Adjuster Plate R H	£26.28 £21.90
6	HP42966-VE2-000 Available to backorder	Adjuster L H	£27.94 £23.28
7	HP44710-VE2-M00ZA Available to backorder	Wheel	£44.74 £37.28
8	HP90110-VA4-000 In stock	Wheel Bolt	£6.44 £5.37
9	HP90403-952-770 Available to backorder	Plain Washer 22Mm	£3.56 £2.97
10	HP90455-VA2-000 In stock	Wheel Washer	£3.08 £2.57
11	HP90502-VE2-800 In stock	Thrust Washer 13Mm	£4.48 £3.73
12	HP90651-VE2-800 In stock	External Circlip 12.7Mm	£1.69 £1.41
13	HP91556-VE2-000 Available to backorder	Collar	£7.01 £5.84
14	HP94511-22000 Available to backorder	External Circlip 22Mm	£2.03 £1.69
15	HP44327-VE2-801 In stock	Drive Shaft Bush	£9.13 £7.61
16	HP91056-VL0-B00 In stock	Bearing	£5.02 £4.18
