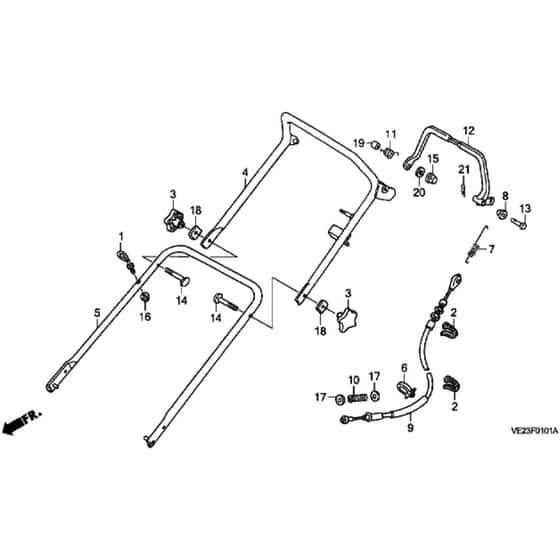

Honda HRB215K4 - PDC - MZBA 6400001-9999999 Handle Pipe Diagram

Description

Honda HRB215K4 - PDC Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP28475-VE1-V00 Available to backorder	Rope Guide	£3.72 £3.10
2	HP32901-VB5-A00 In stock	Cable Tie	Was £6.47 £5.39 Special Price £4.30 £3.58
3	HP53125-VA4-K10 Available to backorder	Handle Grip	£14.29 £11.91
4	HP53150-VA4-J00ZC Available to backorder	Upper Handle	£126.84 £105.70
6	HP53735-SE0-961 Available to backorder	Clip	£7.88 £6.57
7	HP54411-VA3-J00 Available to backorder	Clutch Spring	£8.32 £6.93
8	HP54412-952-770 Available to backorder	Clutch Lever Bush	£4.62 £3.85
9	HP54530-VE1-V01 Available to backorder	Brake Cable Assy	£23.78 £19.82
10	HP75113-VE2-D00 Available to backorder	Brake Spring	£2.60 £2.17
11	HP75118-VA3-J00 In stock	Stop Return Spring R H	£7.82 £6.52
13	HP90106-VA4-000 Available to backorder	Pin	£10.40 £8.67
14	HP90109-VA4-000 Available to backorder	Handle Bolt	£10.62 £8.85
15	HP90301-VA3-J01 Available to backorder	Push Nut	£2.68 £2.23
16	HP90303-VG3-000 Available to backorder	Lock Nut 6Mm	£0.74 £0.62
17	HP90501-VE2-D00 Available to backorder	Washer	£3.77 £3.14
18	HP90501-898-000 Available to backorder	Frame Joint Washer	£4.20 £3.50
19	HP90552-VA3-J00 Available to backorder	Collar 8 X 11 X 13.5	£6.76 £5.63
20	HP94101-08000 Available to backorder	Plain Washer 8Mm	£0.96 £0.80
21	HP94251-08000 In stock	Lock Pin 8Mm	£1.86 £1.55
