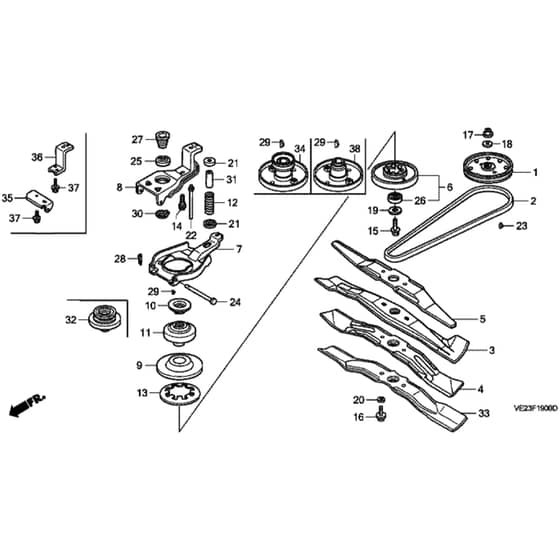

Honda HRB215K4 - HXC - MZBA 6400001-6415006 Rotary Blade Diagram

Description

Honda HRB215K4 - HXC Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HP22420-VE2-J00 Available to backorder	Pulley	£58.08 £48.40
4	HP72511-VG4-K00 Available to backorder	Blade	£49.32 £41.10
5	HP72531-VE2-020 Available to backorder	Upper Blade	£45.13 £37.61
6	HP72600-VE0-000 Available to backorder	Blade Holder Assy	£86.40 £72.00
7	HP75130-VE0-020 Available to backorder	Brake Arm Assy	£88.08 £73.40
9	HP75151-VE0-000 Available to backorder	Driven Disk	£167.78 £139.82
10	HP75161-VE2-801 Available to backorder	Pulley	£82.72 £68.93
11	HP75162-VE2-801 Available to backorder	Pulley	£84.36 £70.30
12	HP75182-VE0-000 Available to backorder	Clutch Return Spring	£12.12 £10.10
13	HP75183-VE0-000 Available to backorder	Clutch Spring	£35.34 £29.45
15	HP90105-VA3-J01 In stock	Bolt Hex 10 X 25	£4.08 £3.40
16	HP90105-960-710 In stock	Blade Bolt	£2.76 £2.30
17	HP90304-GA6-003 Available to backorder	Nut	£4.92 £4.10
18	HP90405-KV3-000 Available to backorder	Thrust Washer	£3.71 £3.09
19	HP90409-952-000 In stock	Washer 10Mm	£1.10 £0.92
20	HP90502-VG3-000 Available to backorder	Spring Washer 10Mm	£1.64 £1.37
21	HP90557-461-000 Available to backorder	Washer	£2.33 £1.94
22	HP90701-VE0-000 Available to backorder	Spring Guide Pin	£17.44 £14.53
23	HP90751-VE2-M00 Available to backorder	Woodruff Key	£0.35 £0.29
24	HP90756-735-000 Available to backorder	Bonnet Hinge Pin	£8.24 £6.87
26	HP91102-VA4-013 Available to backorder	Bearing	£25.38 £21.15
28	HP94201-20150 Available to backorder	Split Pin 2.0 X 15	£1.37 £1.14
29	HP94401-16150 In stock	Woodruff Key	£0.54 £0.45
30	HP94510-35000 In stock	External Circlip 35Mm	£2.74 £2.28
31	HP75181-VE1-R40 Available to backorder	Clutch Spring Holder	£1.18 £0.98
32	HP75160-VE1-R40 In stock	Pulley	£112.20 £93.50
33	HP72511-VE1-020 Available to backorder	Blade	£55.69 £46.41
35	HP75148-VE0-000 Available to backorder	Clutch Arm Hinge	£7.34 £6.12
36	HP75149-VE0-000 Available to backorder	Holder	£24.72 £20.60
37	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.73 £3.11
