Honda HRB215K4 - HXC/A - MZBA 6415007-9999999 Flywheel Diagram

Description

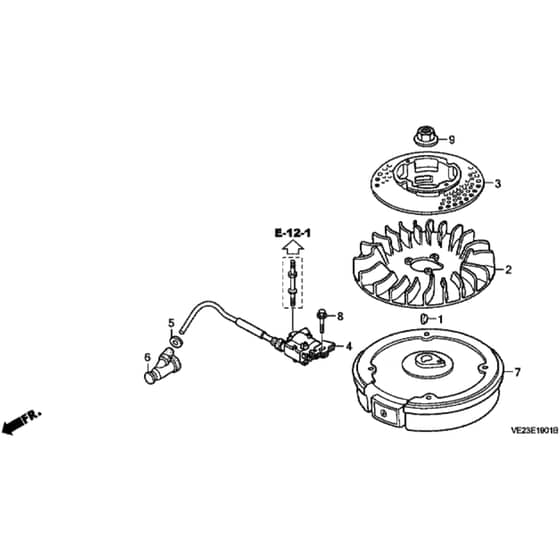

Honda HRB215K4 - HXC/A Rotary Mower Parts Diagram

	Part No.	Details
1	HP13331-357-000 Available to backorder	Woodruff Key	£6.08 £5.07
2	HP19511-ZE6-T00 Available to backorder	Cooling Fan	£37.66 £31.38
3	HP28451-ZE6-T03 Available to backorder	Recoil Pulley	£24.77 £20.64
4	HP30500-ZG9-M03 Available to backorder	Ignition Coil	£144.48 £120.40
5	HP30505-ZE6-000 Available to backorder	Grommet	£3.05 £2.54
6	HP30700-ZE6-023 Out of stock	Cap	£20.00 £16.67
7	HP31100-ZE6-T01 Available to backorder	Flywheel Assy	£184.68 £153.90
8	HP90121-952-000 Available to backorder	Flange Bolt 6 X 25	£2.88 £2.40
9	HP90201-878-003 Available to backorder	Speical Nut 14Mm	£7.09 £5.91
