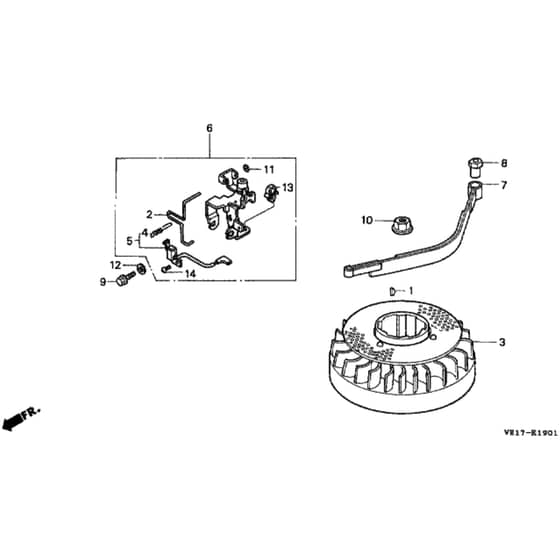

Honda HRB215K3 - SDC - MZBA 6300001-6399999 Flywheel Diagram

Description

Honda HRB215K3 - SDC Rotary Mower Parts Diagram

	Part No.	Details
1	HP13331-357-000 Available to backorder	Woodruff Key	£6.08 £5.07
2	HP16566-ZG9-M90 Available to backorder	Governor Rod	£5.34 £4.45
3	HP31105-ZG9-800 Available to backorder	Flywheel	£202.08 £168.40
4	HP35129-ZG9-800 Available to backorder	Control Spring	£6.72 £5.60
5	HP36100-ZG9-M91 Available to backorder	Engine Stop Switch Assy	£28.42 £23.68
6	HP75101-ZG9-M90 Available to backorder	Brake Lever Assy	£26.10 £21.75
7	HP75120-ZG9-305 Available to backorder	Brake Assy	£18.95 £15.79
8	HP75123-ZG9-800 Available to backorder	Collar	£16.43 £13.69
9	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.77 £3.14
10	HP90201-878-003 Available to backorder	Speical Nut 14Mm	£7.09 £5.91
11	HP90331-SB2-003 Available to backorder	Speed Nut	£4.00 £3.33
12	HP90461-357-000 Available to backorder	Sealing Washer	£7.66 £6.38
13	HP90660-ZA0-600 Available to backorder	Clip	£2.77 £2.31
14	HP93500-04006-0A Available to backorder	Screw	£1.51 £1.26
