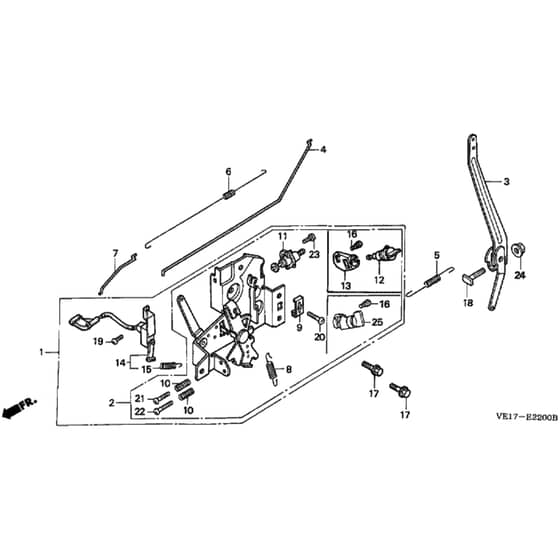

Honda HRB215K3 - HXC - MZBA 6300001-6370093 Control Diagram

Description

Honda HRB215K3 - HXC Rotary Mower Parts Diagram

	Part No.	Details
1	HP04102-ZG9-M10 Available to backorder	Control Assy	£448.68 £373.90
5	HP16561-ZE6-010 In stock	Governor Spring	£4.36 £3.63
6	HP16562-ZE6-000 In stock	Throttle Return Spring	£5.76 £4.80
7	HP16573-ZE6-010 In stock	Choke Rod	£3.62 £3.02
9	HP16576-891-000 Available to backorder	Cable Holder	£3.89 £3.24
10	HP16584-883-300 Available to backorder	Control Adjusting Spring	£4.80 £4.00
12	1271 In stock	Fuel Tap Assy	£3.68 £3.07
13	HP16956-ZM0-000 Available to backorder	Fuel Tap Bracket	£3.35 £2.79
15	HP36120-ZE6-010 Available to backorder	Switch Control Spring	£2.63 £2.19
16	HP90006-ZG9-M00 Available to backorder	Shoulder Bolt	£1.57 £1.31
17	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.77 £3.14
18	HP90015-ZE5-010 Available to backorder	Governor Arm Bolt	£3.35 £2.79
19	HP93500-040080A Available to backorder	Screw	£1.51 £1.26
20	HP93500-050160A Available to backorder	Screw Pan 5X16	£1.51 £1.26
21	HP93500-050200A Available to backorder	Screw Pan 5X20	£1.51 £1.26
22	HP93500-05025-0A Available to backorder	Screw	£1.51 £1.26
24	HP94050-06000 In stock	Flange Nut 6Mm	£3.37 £2.81
