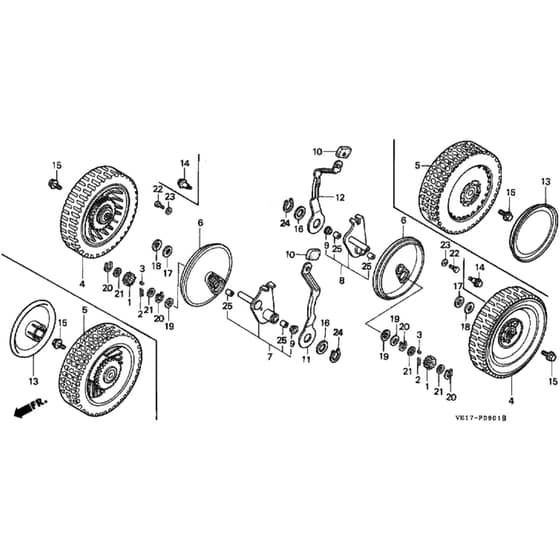

Honda HRB215K3 - HXC/A - MZBA 6370094-6399999 Rear Wheel Diagram

Description

Honda HRB215K3 - HXC/A Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP42661-VE2-800 In stock	Pinion Gear	£9.64 £8.03
2	HP42668-VE2-800 In stock	Pawl Spring	£1.10 £0.92
3	HP42672-VE2-800 In stock	Ratchet Key	£4.04 £3.37
5	HP42710-VF1-000 Available to backorder	Rear Wheel	£50.52 £42.10
6	HP42866-VE2-800 Available to backorder	Cover	£16.73 £13.94
7	HP42930-VE2-405 Available to backorder	Adjuster Arm Assy Rear R H	£28.08 £23.40
8	HP42940-VE2-405 Available to backorder	Adjuster Arm Front L H	£28.08 £23.40
9	HP42944-VE2-801 Available to backorder	Dust Seal 12.7Mm	£11.17 £9.31
10	HP42952-VG3-000ZA Available to backorder	Adjuster Grip	£1.76 £1.47
11	HP42961-VE2-000 Available to backorder	Rear Adjuster Plate R H	£26.68 £22.23
12	HP42966-VE2-000 Available to backorder	Adjuster L H	£28.36 £23.63
13	HP44719-VF0-010 Available to backorder	Wheel Cap	£4.02 £3.35
14	HP90103-VE2-801 Available to backorder	Tapping Screw	£1.82 £1.52
15	HP90110-VA4-000 In stock	Wheel Bolt	£5.76 £4.80
16	HP90403-952-770 Available to backorder	Plain Washer 22Mm	£3.60 £3.00
17	HP90451-HB3-000 Available to backorder	Thrust Washer	£5.76 £4.80
18	HP90455-VA2-000 Available to backorder	Wheel Washer	£2.88 £2.40
19	HP90502-VE2-800 Available to backorder	Thrust Washer 13Mm	£4.20 £3.50
20	HP90651-VE2-800 In stock	External Circlip 12.7Mm	£1.54 £1.28
21	HP91559-VE2-800 In stock	Pinion Gear Collar	£1.76 £1.47
24	HP94511-22000 Available to backorder	External Circlip 22Mm	£1.94 £1.62
25	HP44327-VE2-801 Available to backorder	Drive Shaft Bush	£10.10 £8.42
