Honda HRB215K2 - SXC - MZBA 6200001-6299999 Front Wheel Diagram

Name: Honda HRB215K2 - SXC - MZBA 6200001-6299999 Front Wheel Diagram
SKU: hrb215k2_sxc_mzba_6200001_6299999_front_wheel-group
Price: 0.47 GBP
Availability: InStock

Part No. hrb215k2_sxc_mzba_6200001_6299999_front_wheel-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB215K2 - SXC - MZBA 6200001-6299999 Front Wheel Diagram

Description

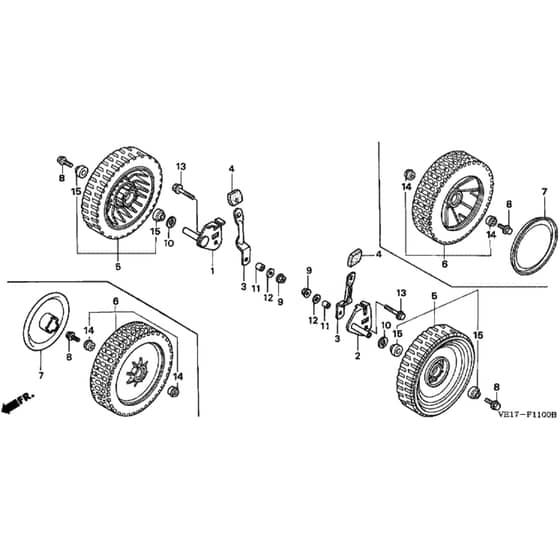

Honda HRB215K2 - SXC Rotary Mower Parts Diagram

	Part No.	Details
1	HP42911-VE1-020 Available to backorder	Adjuster Arm Front R H	£23.27 £19.39
2	HP42921-VE1-020 Available to backorder	Adjuster Arm	£23.27 £19.39
3	HP42951-VE2-000 Available to backorder	Front Adjuster Plate	£17.48 £14.57
4	HP42952-VA4-000 In stock	Adjuster Grip	£1.76 £1.47
5	HP44710-VE0-000 Available to backorder	Front Wheel	£39.58 £32.98
8	HP90110-VA4-000 In stock	Wheel Bolt	£6.44 £5.37
9	HP90115-659-003 In stock	Nut	£1.19 £0.99
10	HP90455-VA2-000 In stock	Wheel Washer	£3.08 £2.57
11	HP91557-VE0-000 Available to backorder	Arm Collar	£13.74 £11.45
12	HP94103-08000 In stock	Plain Washer 8Mm	£0.56 £0.47
13	HP95801-0805000 Available to backorder	Flange Bolt 8 X 50	£2.69 £2.24
15	HP91055-VA4-K10 Available to backorder	Bearing	£8.50 £7.08
