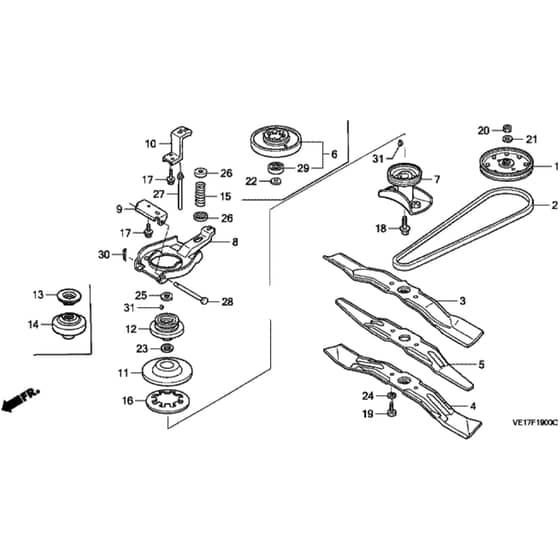

Honda HRB215K2 - SDC - MZBA 6200001-6299999 Rotary Blade Diagram

Name: Honda HRB215K2 - SDC - MZBA 6200001-6299999 Rotary Blade Diagram
SKU: hrb215k2_sdc_mzba_6200001_6299999_rotary_blade-group
Price: 0.45 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB215K2 - SDC - MZBA 6200001-6299999 Rotary Blade Diagram

Description

Honda HRB215K2 - SDC Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP22420-VE2-M00 In stock	Pulley	Was £66.58 £55.48 Special Price £35.99 £29.99
2	HP22431-VE2-801 Available to backorder	Belt	£35.93 £29.94
3	HP72511-VE1-020 Available to backorder	Blade	£55.69 £46.41
4	HP72511-VG4-K00 Available to backorder	Blade	£49.32 £41.10
5	HP72531-VE2-020 Available to backorder	Blade	£45.13 £37.61
5	HP72531-VE2-010 Available to backorder	Blade	£45.67 £38.06
7	HP72610-VE0-A50 Available to backorder	Blade Holder Assy	£47.54 £39.62
7	HP72610-VE2-D00 Available to backorder	Blade Holder	£44.84 £37.37
18	HP90105-VA3-J01 In stock	Bolt Hex 10 X 25	£4.08 £3.40
19	HP90105-960-710 In stock	Blade Bolt	£2.76 £2.30
20	HP90301-VE2-800 Available to backorder	Nut	£6.19 £5.16
24	HP90481-430-000 In stock	Washer	£1.20 £1.00
31	HP94401-16150 In stock	Woodruff Key	£0.54 £0.45
