Honda HRB215K2 - PXC - MZBA 6200001-6299999 Handle Pipe Diagram

Name: Honda HRB215K2 - PXC - MZBA 6200001-6299999 Handle Pipe Diagram
SKU: hrb215k2_pxc_mzba_6200001_6299999_handle_pipe-group
Price: 0.94 GBP
Availability: InStock

Part No. hrb215k2_pxc_mzba_6200001_6299999_handle_pipe-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB215K2 - PXC - MZBA 6200001-6299999 Handle Pipe Diagram

Description

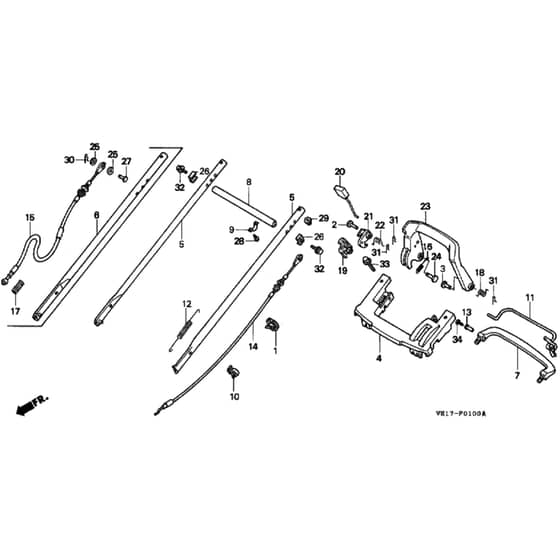

Honda HRB215K2 - PXC Rotary Mower Parts Diagram

	Part No.	Details
1	HP32901-VB5-A00 In stock	Cable Tie	Was £6.12 £5.10 Special Price £4.30 £3.58
2	HP50603-KB4-000 Available to backorder	Pin	£8.14 £6.78
3	HP50603-MC4-000 Available to backorder	Pin	£7.91 £6.59
4	HP53110-VE2-L00 Available to backorder	Upper Handle	£124.20 £103.50
5	HP53150-VE2-L00ZA Available to backorder	Lower Handle	£75.12 £62.60
7	HP53165-VE2-L00 Available to backorder	Handle Grip	£49.18 £40.98
8	HP53168-VE0-000ZA Available to backorder	Connecting Pipe	£114.60 £95.50
9	HP53169-VE0-000 Available to backorder	Handle Connecting Plate	£4.87 £4.06
10	HP53735-SE0-961 Available to backorder	Clip	£8.15 £6.79
13	HP54413-VE2-L01 Available to backorder	Clutch Lever Pivot	£1.16 £0.97
15	HP54530-VE0-003 Available to backorder	Roto-Stop Cable	£28.24 £23.53
18	HP75118-VE0-000 Available to backorder	Stop Return Spring R H	£4.46 £3.72
19	HP75128-VE0-000 In stock	Cable Arm	Was £15.19 £12.66 Special Price £10.57 £8.81
20	HP75165-VE0-000 Available to backorder	Ratchet Push Rod	£9.34 £7.78
21	HP75166-VE0-000 Available to backorder	Lock Lever	£3.97 £3.31
22	HP75168-VE0-000 Available to backorder	Pawl Spring	£1.13 £0.94
23	HP75191-VE0-000 Available to backorder	Roto-Stop Lever	£57.95 £48.29
24	HP77226-750-003 Available to backorder	Pin	£6.48 £5.40
26	HP90501-898-000 In stock	Frame Joint Washer	£3.47 £2.89
27	HP90754-VA3-J00 Available to backorder	Cable Joint Pin	£4.14 £3.45
28	HP93911-24120 Available to backorder	Tapping Screw	£1.86 £1.55
29	HP90115-659-003 In stock	Nut	£1.19 £0.99
29	HP94050-08000 In stock	Flange Nut 8Mm	£3.37 £2.81
30	HP94251-06000 In stock	Lock Pin 6Mm	£1.22 £1.02
31	HP94251-08000 In stock	Lock Pin 8Mm	£1.84 £1.53
32	HP95701-06045-08 Available to backorder	Bolt	£2.03 £1.69
33	HP95701-0804500 Available to backorder	Flange Bolt 8 X 45	£2.29 £1.91
34	HP90101-VE2-L00 Available to backorder	Tapping Screw	£1.68 £1.40
